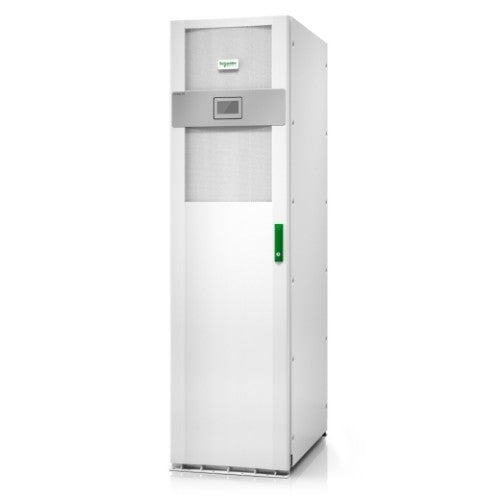

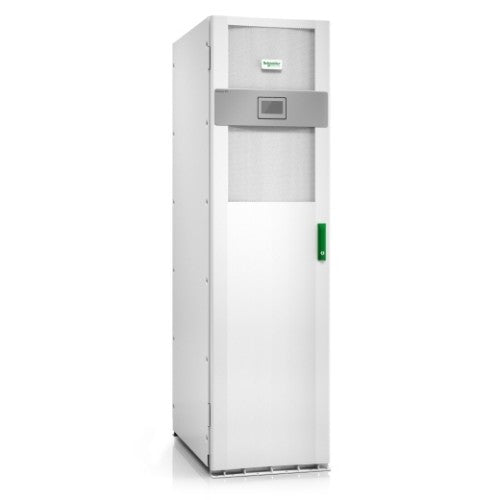

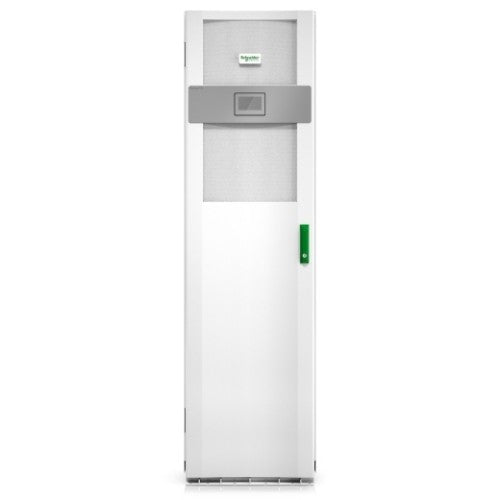

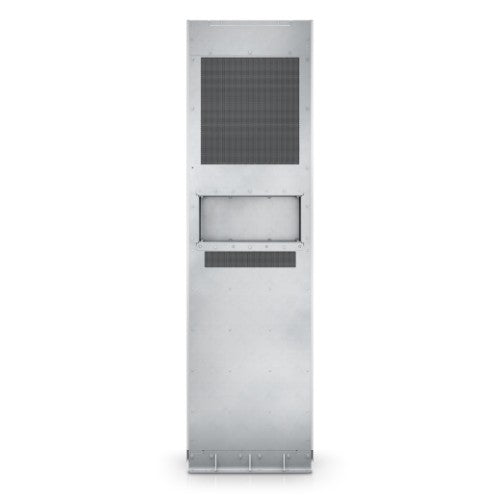

40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, Start-up 5x8

Description

Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.

Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.

Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.

Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy

Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.

Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.

Embedded Network Management Card
Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.

Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.

High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.

Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Wide input voltage range
Designed for harsh electrical environments to save battery life.

Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.

Multiple levels of service offers
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.

EcoStruxure IT Expert
From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Specifications

Power
Output frequency	50/60 Hz
Output voltage regulation	1%
Input power factor	0.99
Output power	40000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Maximum current	72 A
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Crest factor	2.5:1
Output power capacity	40 kVA
ECO mode	Yes
Input frequency	40/70 Hz
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of input phases	3
Response time	3 ms
Noise level	65 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	1%
Number of input phases	3
Input power factor	0.99
Response time	3 ms
Output power	40000 W
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Maximum current	72 A
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	65 dB
Input current Total Harmonic Distortion (THD)	3%
Crest factor	2.5:1
Audible alarm(s)	Yes
Output power capacity	40 kVA
ECO mode	Yes
Input frequency	40/70 Hz
Battery
Battery voltage	480 V
Battery technology	Sealed Lead Acid (VRLA)
Design
International Protection (IP) code	IP20
Form factor	Tower
Product colour	White
Certification	IEC 62040-1-1, IEC 62040-2, OSHPD
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 39598.4" (0 - 1005.8 m)
Non-operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Certificates
Certification	IEC 62040-1-1, IEC 62040-2, OSHPD
Packaging content
Manual	Yes
Weight & dimensions
Package width	29.7" (755 mm)
Package depth	39.8" (1010 mm)
Package height	82" (2082 mm)
Weight	551.2 lbs (250 kg)
Width	21.7" (550 mm)
Package weight	551.2 lbs (250 kg)
Height	77.6" (1970 mm)
Depth	33.3" (847 mm)
Packaging data
Manual	Yes
Package width	29.7" (755 mm)
Package depth	39.8" (1010 mm)
Package height	82" (2082 mm)
Package weight	551.2 lbs (250 kg)
Logistics data
Harmonized System (HS) code	85078000
