Siig JU-P40A11-S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Siig

Siig JU-P40A11-S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

Part number: JU-P40A11-S1
$32.83 $41.99
Save $9.16
22% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

4 x USB 3.0, PCI Express, SATA, 5Gbps

Key Features

  • Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system
  • Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset
  • Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)
  • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification
  • Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only)
  • PCI Bus Power Management Interface Specification Revision 1.2

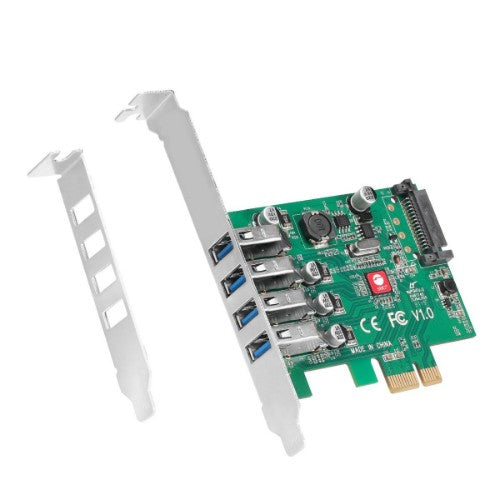

  • Dual-profile design installs into different system form factor chassis with the included full and low profile brackets
  • Each USB port features over-current protection to protect your connected device from power surges

Description

Siig DP USB 3.0 4-Port PCIe Card adds four external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCIe enabled desktop computer

Specifications

Ports & interfaces
Internal Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Output interface USB 3.2 Gen 1 (3.1 Gen 1)
Host interface PCIe
Expansion card standard PCIe 2.0
Technical details
Purpose PC
Data transfer rate (max) 5 Gbit/s
Compliance certificates RoHS
Performance
Purpose PC
Data transfer rate (max) 5 Gbit/s
Certificates
Certification FCC, CE
Design
Purpose PC
Internal Yes
Certification FCC, CE
Features
Data transfer rate (max) 5 Gbit/s
Power
Output voltage 5 V
Output current 0.9 A
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 2.68" (68.1 mm)
Depth 3.35" (85.1 mm)
Height 0.728" (18.5 mm)
Weight 2.4 oz (68 g)
Packaging data
Quantity 1
Packaging content
Quantity 1
