512GB PRO HXS 7mm 2.5" SSD, SATA, 100.45 x 69.85 x 7 mm, 60 g
Conforming to the industry standard SATA connector specification, these SSDs integrate easily into existing storage infrastructures. The VisionTek PRO HXS Series SSDs provide high bandwidth and IOPS while efficiently managing write amplification. Employing SSD technology in a system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
VisionTek

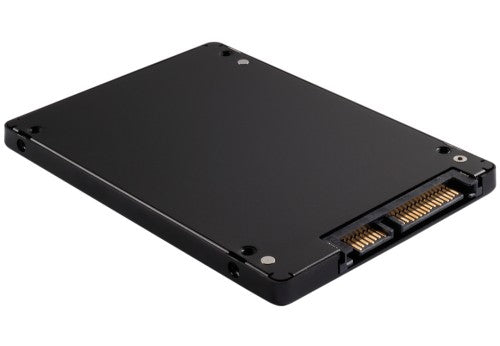

VisionTek PRO HXS 512 GB 2.5" Serial ATA 3D TLC NAND
Part number:
901297
$202.28
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Silicon Motion SM2258HX controller
- SLC caching accelerates burst performance
- Global wear leveling evens program/erase counts to extend drive lifespan
- StaticDataRefresh technology ensures data integrity
- Intelligent garbage collection routines for advanced free space management
- TRIM command support (OS dependent)
- M.A.R.T. support
- LDPC hard and soft decode ECC
- DEVSLP support
- Field-upgradeable firmware
- SATA 3.1 Compliant SATA 6Gb/s – backwards compatible with SATA 3Gb/s and 1.5Gb/s
- ATA/ATAPI-8-ACS3 command set compliant
- Industry-standard 512-byte sector support
- Temperature sensor
- Native Command Queuing (NCQ) support with 32 command queue depth
- RoHS-compliant package
- 3D TLC NAND
- DRAM support
Description
The VisionTek PRO HXS Series 2.5” 7mm SSD is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive our PRO HXS Series SSDs are a drop-in replacement option for a hard disk drive (HDD). It delivers superior reliability, durability, power efficiency and performance - keeps your system working reliably in the toughest of conditions.Conforming to the industry standard SATA connector specification, these SSDs integrate easily into existing storage infrastructures. The VisionTek PRO HXS Series SSDs provide high bandwidth and IOPS while efficiently managing write amplification. Employing SSD technology in a system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 512 GB |
| Memory type | 3D TLC NAND |
| Access time | 0.1 ms |
| Data transmission | |
| Read speed | 560 MB/s |
| Write speed | 520 MB/s |
| Random write (4KB) | 81000 IOPS |
| Random read (4KB) | 75000 IOPS |
| Features | |
| Interface | Serial ATA |
| Component for | PC/Laptop |
| SSD capacity | 512 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 560 MB/s |
| TRIM support | Yes |
| Write speed | 520 MB/s |
| ECC | Yes |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 81000 IOPS |
| Random read (4KB) | 75000 IOPS |
| Access time | 0.1 ms |
| SSD form factor | 2.5" |
| Performance | |
| Interface | Serial ATA |
| Component for | PC/Laptop |
| SSD capacity | 512 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 560 MB/s |
| TRIM support | Yes |
| Write speed | 520 MB/s |
| ECC | Yes |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 81000 IOPS |
| Random read (4KB) | 75000 IOPS |
| Access time | 0.1 ms |
| Design | |
| Component for | PC/Laptop |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 3.95" (100.5 mm) |
| Weight | 2.12 oz (60 g) |
| Height | 0.276" (7 mm) |
| Depth | 2.75" (69.8 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Vibration resistance | 3.1 G |
| Technical details | |
| Interface | Serial ATA |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| ECC | Yes |
| Operating shock | 1500 G |
| SSD form factor | 2.5" |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
