UC3200, Intel Xeon D-1521, 8 GB DDR4, 12x 2./3.5" SAS, 1x 1GbE RJ-45, 1x 10GbE RJ-45, PCIe x8 3.0, 482x724x88 mm
Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.
12 x 3.5”/2.5” HDD/SSD
High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-active controller module
Dual controller modules work simultaneously to provide high performance and non-disruptive iSCSI services.
PCIe 3.0 slot
Further boost network bandwidth with optional 10GbE/25GbE network interface cards' expansion.
2 x 1GbE & 1 x 10GbE
Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.
4 x DDR4 memory slots
8GB ECC UDIMM, expandable up to 64GB to boost system performance.
Fan
Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.
SATA DOM
The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.
Non-Transparent Bridge (NTB)
Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.
Works with mainstream virtualization systems
Optimized for virtualization environments.
- Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
- Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.
A system built exclusively for iSCSI
DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.
Disaster-proof your critical data
Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Synology

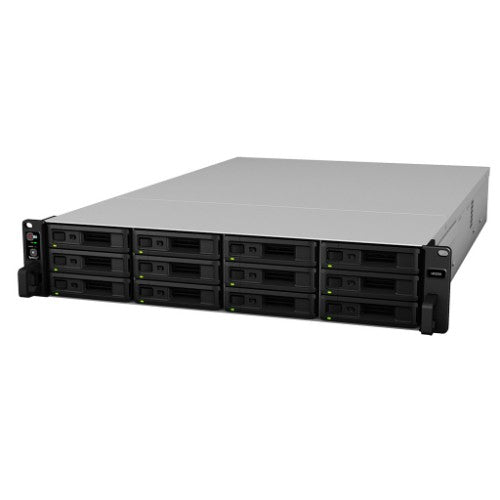

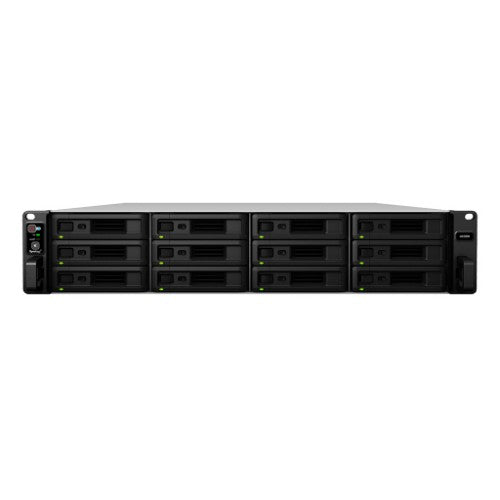

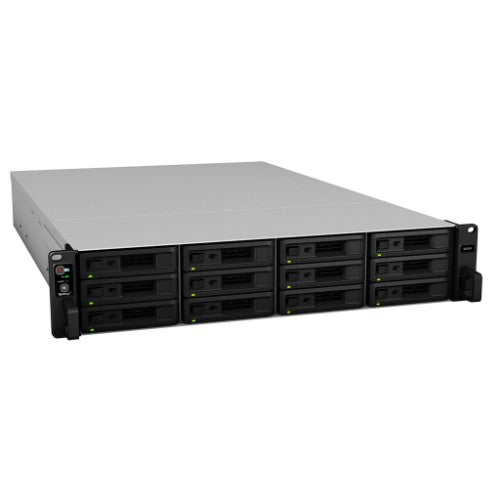

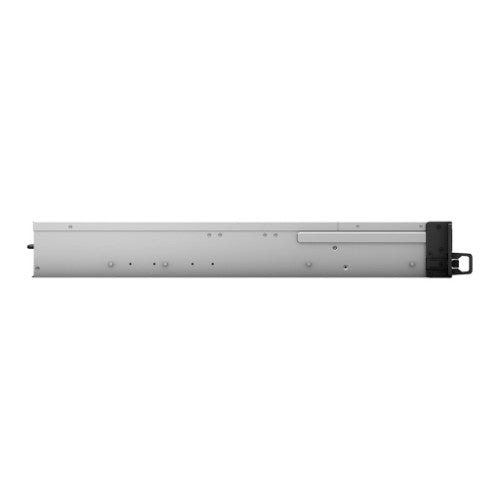

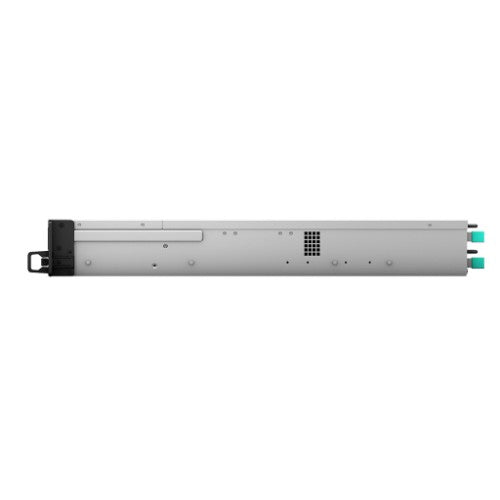

Synology Unified Controller UC3200 SAN Rack (2U) Intel® Xeon® D D-1521 8 GB DDR4 Black, Gray
Part number:
UC3200
$7,620.32
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Delivering reliable, highly available iSCSI servicesRealizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.
12 x 3.5”/2.5” HDD/SSD
High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-active controller module
Dual controller modules work simultaneously to provide high performance and non-disruptive iSCSI services.
PCIe 3.0 slot
Further boost network bandwidth with optional 10GbE/25GbE network interface cards' expansion.
2 x 1GbE & 1 x 10GbE
Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.
4 x DDR4 memory slots
8GB ECC UDIMM, expandable up to 64GB to boost system performance.
Fan
Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.
SATA DOM
The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.
Non-Transparent Bridge (NTB)
Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.
Works with mainstream virtualization systems
Optimized for virtualization environments.
- Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
- Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.
A system built exclusively for iSCSI
DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.
Disaster-proof your critical data
Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Maximum supported storage capacity | 192 TB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 45 W |
| Stepping | V2 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor socket | BGA 1667 |
| Processor series | Intel Xeon D-1500 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Broadwell |
| Processor code | SR2DF |
| Processor cache | 6 MB |
| Processor boost frequency | 2.7 GHz |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Conflict-Free processor | Yes |
| Processor ARK ID | 91202 |
| Processor frequency | 2.4 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1521 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Network | |
| Link aggregation | Yes |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Wi-Fi | No |
| Supported network protocols | iSCSI, Telnet, SSH, SNMP |
| iSCSI support | Yes |
| Ports & interfaces | |
| USB port | No |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Product colour | Black, Gray |
| Number of fans | 2 fan(s) |
| LED indicators | Power, Status |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | SAN |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| Product colour | Black, Gray |
| Noise level | 51.3 dB |
| Multilingual support | Yes |
| LED indicators | Power, Status |
| Chassis type | Rack (2U) |
| Number of fans | 2 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Performance | |
| Browser supported | Chrome, Firefox, Edge,Internet Explorer 10+, Safari 10+, Chrome |
| Type | SAN |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| On/off switch | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016 |
| Other operating systems supported | Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Noise level | 51.3 dB |
| Multilingual support | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 2 fan(s) |
| Software | |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016 |
| Other operating systems supported | Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
| Linux operating systems supported | Yes |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power consumption (HDD standby) | 274.38 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 417.48 W |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 28.5" (724 mm) |
| Height | 3.46" (88 mm) |
| Weight | 43.4 lbs (19.7 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC |
| Processor special features | |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 32 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| System requirements | |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016 |
| Other operating systems supported | Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 196850.4" (0 - 5000 m) |
| Certificates | |
| Certification | EAC VCCI CCC RCM KC FCC CE BSMI |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Packaging data | |
| Cables included | AC |
| Other features | |
| Processor ARK ID | 91202 |
| Certification | EAC VCCI CCC RCM KC FCC CE BSMI |
| Compliance certificates | RoHS |
