TI-G160i, 16x 1G RJ-45, 6-pin terminal block, 32Gbps, 23.8Mpps, 128MB, QoS, VLAN, ACL, 160x120x50 mm
Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).
Integration Flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial Design
Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
Network Ports
16 Gigabit Ports
Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Access Control
Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

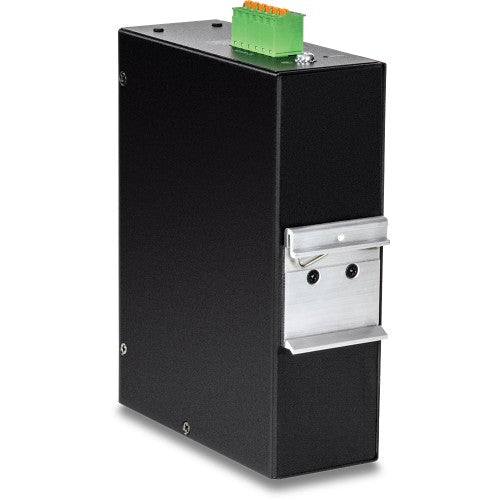

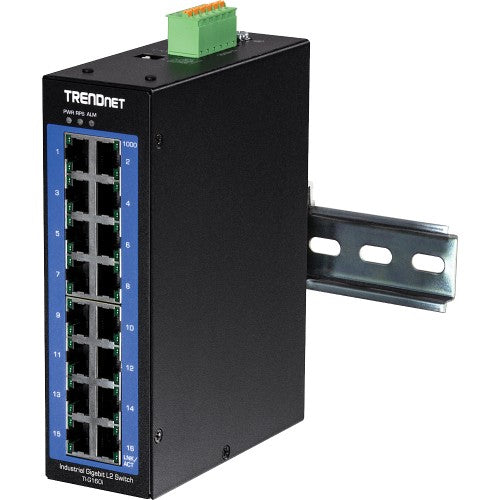

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket
Switching Capacity
32Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Extreme Temperatures
Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Trendnet

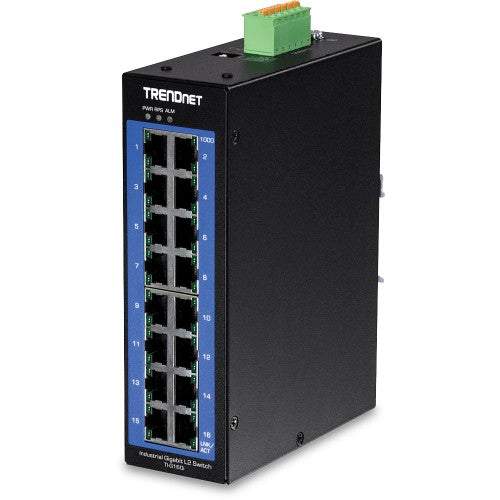

Trendnet TI-G160i Managed L2 Gigabit Ethernet (10/100/1000) Black
Part number:
TI-G160I
Sale price
$503.82
Regular price
$619.02
Save
$115.20
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 16 x Gigabit ports
- 32Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-rail mounting bracket
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- Bandwidth control per port
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
Description
TRENDnet’s 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).
Integration Flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial Design
Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
Network Ports
16 Gigabit Ports
Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
Access Control
Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket
Switching Capacity
32Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
Extreme Temperatures
Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | II RFC 1213, RFC 1493 |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 128 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 23.8 Mpps |
| Multicast MAC address table | 256 entries |
| Number of VLANs | 4094 |
| Security | |
| BPDU filtering/protection | Yes |
| Security algorithms | SNMP, SNMPv3, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WFQ, Weighted Round Robin (WRR) |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast MAC address table | 256 entries |
| Multicast support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Performance | |
| Mean time between failures (MTBF) | 1072674 h |
| Packet buffer memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 12 W |
| DC input voltage | 12 - 60 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 4.72" (120 mm) |
| Height | 1.97" (50 mm) |
| Weight | 31.2 oz (884 g) |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1072674 h |
| Housing material | Metal |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 128 MB |
| Certificates | |
| Certification | CE, FCC IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
