2.4GHz, 5 GHz, 300Mbps, 10/100/1000 Base-TX port
Tenda

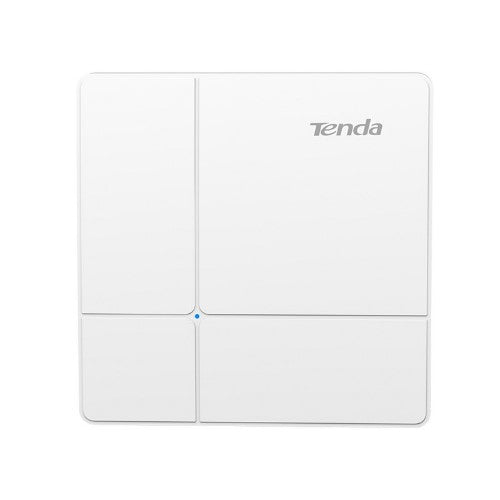

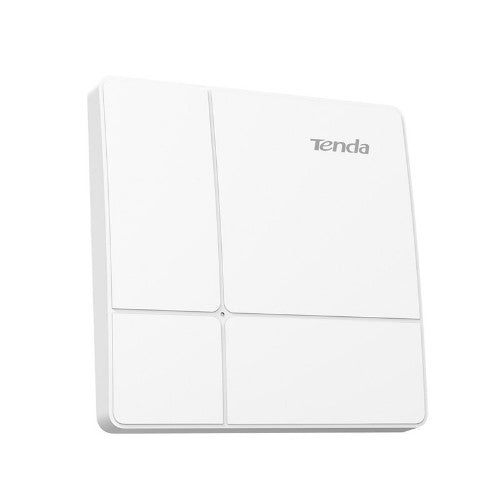

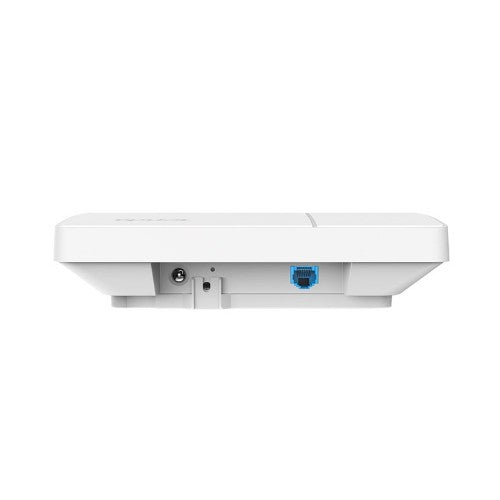

Tenda i24 White Power over Ethernet (PoE)
Part number:
I24
$53.88
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| Bandwidth | 24 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE\FCC\RoHS |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 24 GHz |
| Management features | |
| VLAN support | Yes |
| Certificates | |
| Certification | CE\FCC\RoHS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth | 24 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Security | |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Protocols | |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 11.5 W |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
| Certification | CE\FCC\RoHS |
| Antenna | |
| Antennas quantity | 2 |
| Antenna gain level (max) | 2 dBi |
| Technical details | |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Indication | |
| LED indicators | System |
| Weight & dimensions | |
| Width | 7.01" (178 mm) |
| Depth | 7.01" (178 mm) |
| Height | 1.5" (38 mm) |
