Siig JJ-E20411-S1 interface cards/adapter Internal Parallel, RS-232

Key Features

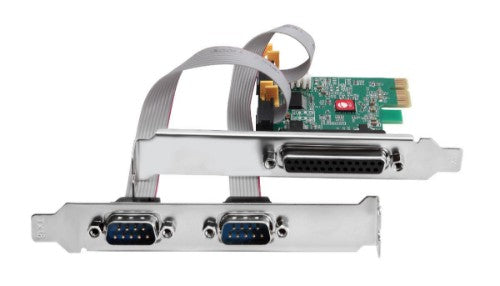

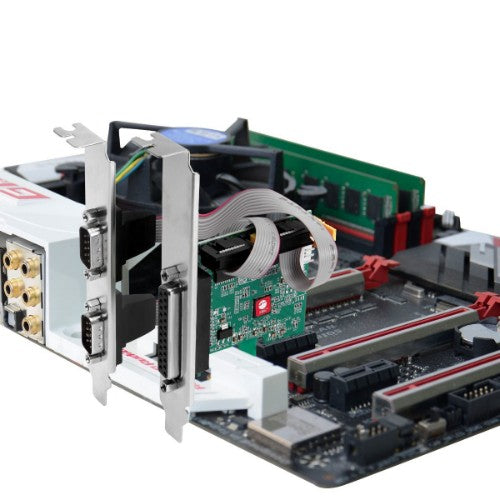

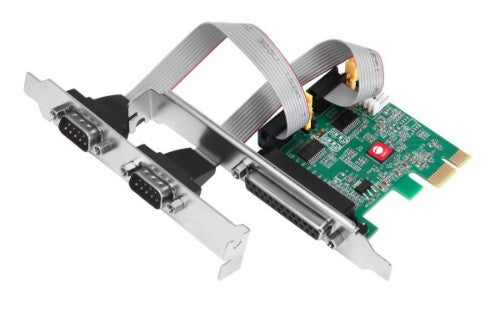

• Easily adds two serial ports and one parallel port through an available PCI Express slot
• 16C650 UART serial port with data transfer rate up to 250Kbps
• Compliant with PCI Express 2.0 Gen 1
• Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
• Single-lane (X1) PCI Express end-point controller with PHY integrated
• Full serial modem control
• Hardware and software flow control
• 5, 6, 7, 8 and 9-bit serial format
• Even, odd, none, space and mark parity
• On chip 256 byte depth FIFO buffers in transmit, receive path of each serial port

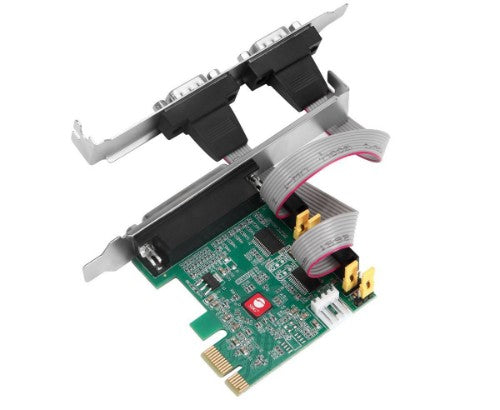

• Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
• Complies with PCI bus Power Management Interface Specification Revision 1.2

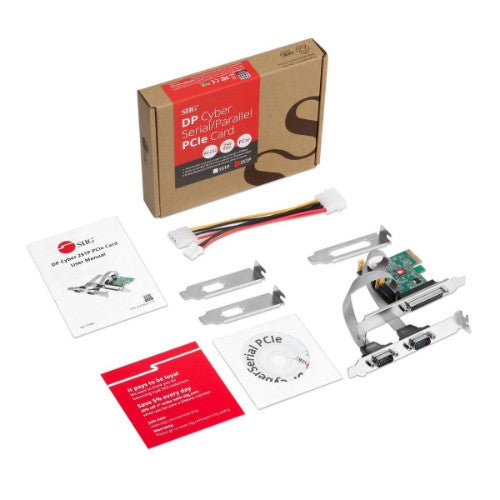

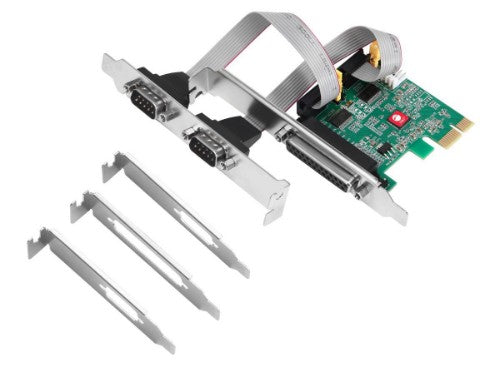

• Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
• Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc
