Q6074-E, CMOS, 1/2.8, WDR, IK10, IP66, IP67, 1280x720, 4.25-127.5 mm
Axis

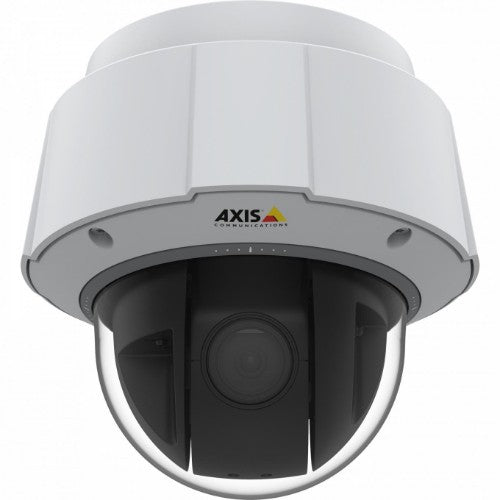

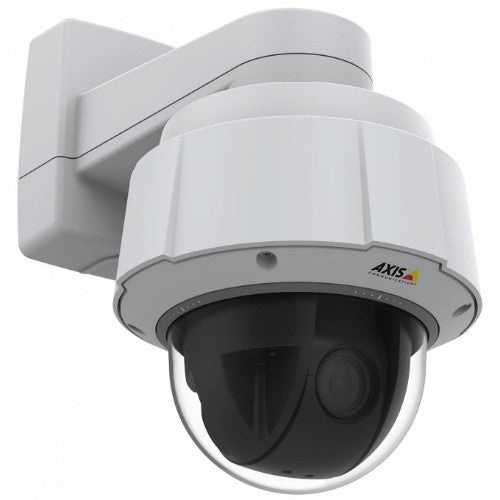

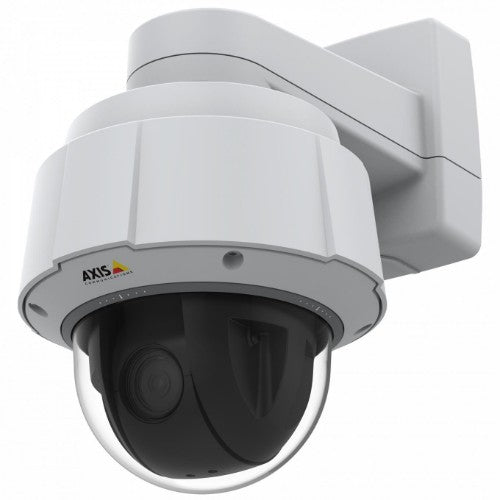

Axis 01974-004 security camera Dome IP security camera Indoor & outdoor 1280 x 720 pixels Wall
Part number:
01974-004
Sale price
$2,890.18
Regular price
$2,969.00
Save
$78.82
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Autotracking 2 and orientation aid; Axis Lightfinder 2.0; Built-in analytics; HDTV 720p with 30x optical zoom; TPM, FIPS 140-2 level 2 certified
Description
AXIS Q6074-E PTZ Network Camera offers HDTV 720p and 30x optical zoom for great overviews and excellent details. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. With Axis Lightfinder 2.0 the camera delivers low-light images with more saturated colors and sharper images of moving objects. Plus, enhanced security features such as signed firmware and secure boot ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements.Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Processor model | ARTPEC-7 |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminum, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.002 lx |
| Tilt angle range | 0 - 220° |
| Tilt speed | 450 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 450 °/sec |
| Camera shutter speed | 1/11000 - 1/3 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 63.8 - 2.6° |
| Lens viewing angle, vertical | 38.0 - 1.47° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.2 |
| Auto focus | Yes |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.25 - 127.5 mm |
| Night vision | |
| Night vision | Yes |
| Video | |
| Image quality adjustment | Brightness, Color depth, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 1280 x 720 pixels |
| Supported graphics resolutions | 320 x 180, 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Video recording | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC, SDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | Black, White |
| Mounting type | Wall |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Doesn't contain | PVC |
| Warranty period | 5 year(s) |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Material | |
| Housing material | Aluminum, Polycarbonate (PC) |
| Power | |
| Power source type | AC, PoE |
| Power consumption (max) | 66.1 W |
| Power consumption (Power over Ethernet (PoE)) | 60 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 14 W |
| Certificates | |
| International Protection (IP) code | IP66, IP67 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 10.7" (271 mm) |
| Diameter | 9.13" (23.2 cm) |
| Weight | 8.27 lbs (3.75 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
