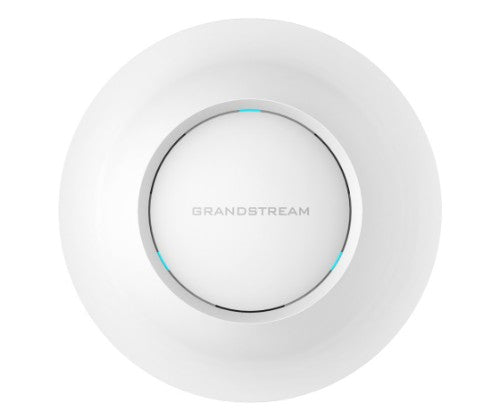

Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)
  • Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)
  • Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)
Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)
Grandstream Networks

Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)

Part number: GWN7630
$101.45 $120.00
Save $18.55
15% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

GWN7630, Wi-Fi, 802.11ac/a/b/g/n, 2.33 Gbps, 4×4:4 MU-MIMO, QoS, 2x 1G RJ-45 LAN, PoE, 205.3x205.3x45.9 mm

Key Features

  • 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
  • Dual-band 4×4:4 MU-MIMO technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports 200+ concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management

Description

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 2330 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Transmitting power 27 dBmW
Reset button Yes
Frequency band 2.412 - 2.484; 5.18 - 5.825 GHz
Number of users 200 user(s)
VLAN support Yes
Receiver sensitivity 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Maximum outdoor range 6889.8" (175 m)
Ethernet LAN data rates 10,100,1000 Mbit/s
Channel bandwidth 80 MHz
Certification FCC, CE, RCM, IC
Maximum data transfer rate 2330 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Wireless LAN features
Frequency band 2.412 - 2.484; 5.18 - 5.825 GHz
Maximum outdoor range 6889.8" (175 m)
Network
Number of users 200 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Bandwidth
Channel bandwidth 80 MHz
Security
Cable lock slot Yes
Number of SSID supported 15
Security algorithms WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Management features
VLAN support Yes
Quality of Service (QoS) support Yes
Certificates
Certification FCC, CE, RCM, IC
Features
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Transmitting power 27 dBmW
Frequency band 2.412 - 2.484; 5.18 - 5.825 GHz
Number of users 200 user(s)
VLAN support Yes
Receiver sensitivity 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Maximum outdoor range 6889.8" (175 m)
Ethernet LAN data rates 10,100,1000 Mbit/s
Channel bandwidth 80 MHz
Maximum data transfer rate 2330 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Protocols
Supported network protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (max) 16.5 W
Power over Ethernet (PoE) Yes
Design
Placement Ceiling, Wall
Product colour White
Reset button Yes
LED indicators Status
Certification FCC, CE, RCM, IC
Cable lock slot Yes
Cable lock slot type Kensington
Antenna
Antenna type Internal
Antennas quantity 4
Antenna gain level (max) 5 dBi
Technical details
Transmitting power 27 dBmW
Reset button Yes
Receiver sensitivity 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS
Harmonized System (HS) code 85176990
Indication
LED indicators Status
Weight & dimensions
Width 8.08" (205.3 mm)
Depth 8.08" (205.3 mm)
Weight 20.8 oz (590 g)
Height 1.81" (45.9 mm)
Package width 10.2" (258 mm)
Package depth 9.72" (247 mm)
Package height 3.39" (86 mm)
Package weight 32.8 oz (930 g)
Packaging data
Quick start guide Yes
Mounting kit Yes
Package width 10.2" (258 mm)
Package depth 9.72" (247 mm)
Package height 3.39" (86 mm)
Package weight 32.8 oz (930 g)
Packaging content
Quick start guide Yes
Mounting kit Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
