10000VA /10000W, 176-288V, 2x L6-20R, 2x L6-30R
Vertiv

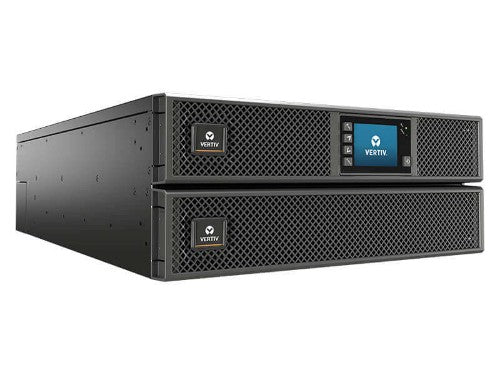

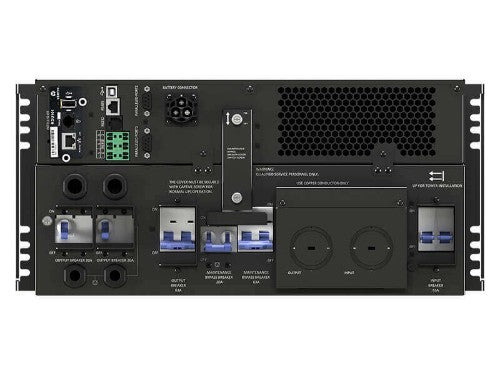

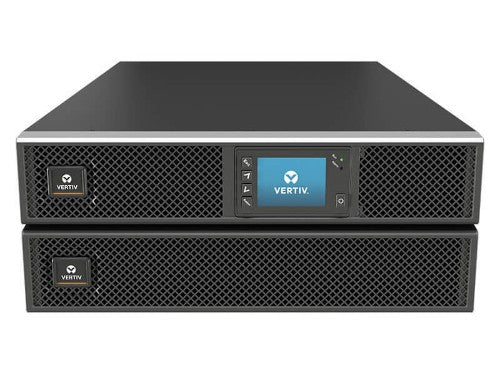

Vertiv Liebert GXT5-10KHVRT5UXLN uninterruptible power supply (UPS) 10 kVA 10000 W 4 AC outlet(s)
Part number:
GXT5-10KHVRT5UXLN
Sale price
$9,241.72
Regular price
$14,269.00
Save
$5,027.28
35%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High power factor operation up to unity, allows for more connected devices
- Energy Star® 2.0 certification; high efficiency in online (95%) and Active ECO (98%) modes
- Enhanced local and remote management capabilities for intelligent critical infrastructure management
- SNMP network communications with Vertiv™ RDU101 NIC (optional for 3kVA units; factory pre-installed for 5-20kVA units) streamlines installation and maintenance
- Auto-detection of external battery cabinets for scalable power
- Connected Equipment Protection Plan
Description
The Vertiv™ Liebert® GXT5-10KHVRT5UXLN UPS offers premium power outage protection and continuous power conditioning in a flexible rack/tower design. It is ideal for centralized and edge network applications. This single-phase UPS has 3-wire system L-L-G, standard POD hardwire in/out with L6-20R and L6-30R outputs and with integrated maintenance bypass. Optional PODs are available. A factory pre-installed Vertiv™ RDU101 SNMP/Webcard provides remote, SNMP and web UI-based monitoring.Specifications
| Power | |
|---|---|
| Output power | 10000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output power capacity | 10 kVA |
| Input frequency | 50/60 Hz |
| Performance | |
| Waveform | Sine |
| Features | |
| Waveform | Sine |
| Output power | 10000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output power capacity | 10 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 7 min |
| Typical backup time at full load | 2 min |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Display type | LCD |
| Weight & dimensions | |
| Weight | 166.4 lbs (75.5 kg) |
| Width | 16.9" (430 mm) |
| Height | 8.54" (217 mm) |
| Depth | 24.8" (630 mm) |
