Steel, VRLA, 144 V, 55 A, 432 x 86 x 719 mm, 43.91 kg
The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the
voltages of the batteries at the same level to increase battery life.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by
utilizing a built-in charger. Restores charge from 0-90% within four
hours regardless of the number of EBMs.
Smart Battery Management
Improves and extends the functional life of a UPS battery and reduces
excessive heat during work cycles by using a three-cycle charging
process.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power
maintenance.
Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system.
Replaceable DC Fuses
Are located behind an easy-access panel.
Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload.
Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation.
Cyberpower

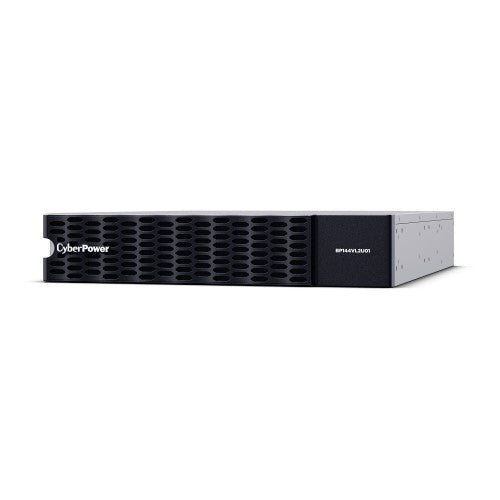

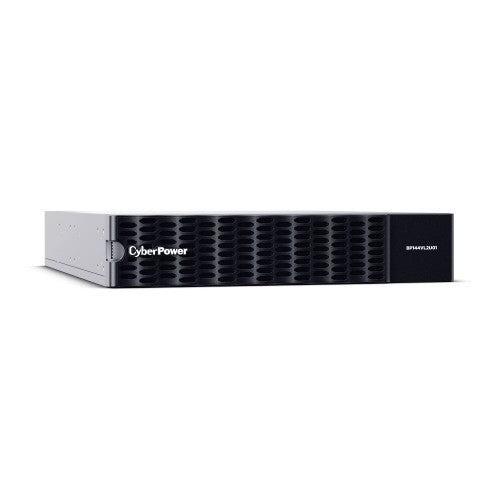

CyberPower BP144VL2U01 UPS battery Sealed Lead Acid (VRLA) 144 V 9 Ah
Part number:
BP144VL2U01
Sale price
$1,556.49
Regular price
$2,173.17
Save
$616.68
28%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Typical recharge time (0-90%): 4 hours
- Battery type & quantity: 12V/9AH (12)
- Form factor: Rack/Tower
- Hot swappable: Yes
- Battery Equalization Technology: Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
Description
The CyberPower BP144VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL5KRTHD and OL6KRTHD.The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the
voltages of the batteries at the same level to increase battery life.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by
utilizing a built-in charger. Restores charge from 0-90% within four
hours regardless of the number of EBMs.
Smart Battery Management
Improves and extends the functional life of a UPS battery and reduces
excessive heat during work cycles by using a three-cycle charging
process.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power
maintenance.
Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system.
Replaceable DC Fuses
Are located behind an easy-access panel.
Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload.
Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation.
Specifications
| Features | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 144 V |
| Hot-swap battery | Yes |
| Number of batteries included | 12 pc(s) |
| Maximum discharge current | 55 A |
| Battery recharge time | 4 h |
| Weight & dimensions | |
| Weight | 96.8 lbs (43.9 kg) |
| Width | 17" (432 mm) |
| Height | 3.39" (86 mm) |
| Depth | 28.3" (719 mm) |
| Packaging data | |
| Package width | 23.6" (599.4 mm) |
| Package height | 8.5" (215.9 mm) |
| Package depth | 43.3" (1099.8 mm) |
| Package weight | 116.8 lbs (53 kg) |
| Package weight | 116.8 lbs (53 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 393700.8" (0 - 10000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
