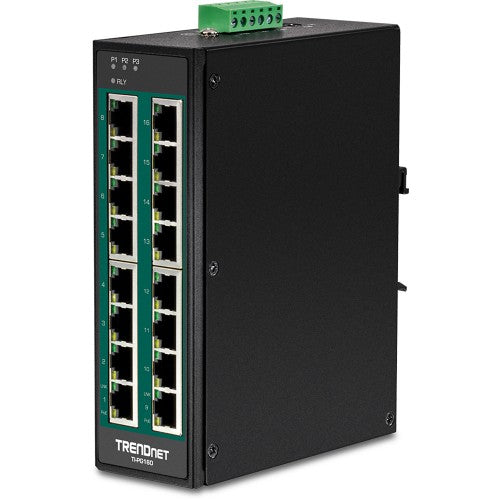

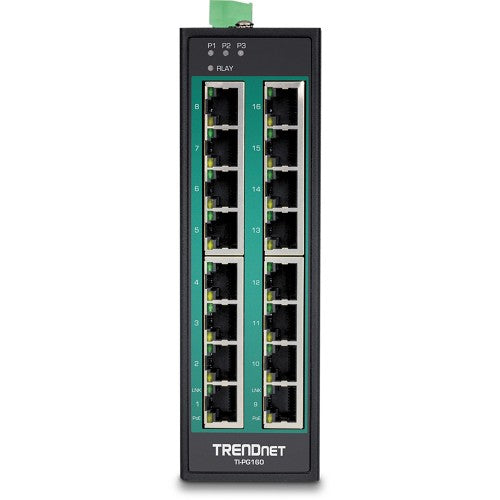

TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch
Trendnet
Trendnet TI-PG160 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-PG160
Sale price
$438.93
Regular price
$540.89
Save
$101.96
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 16 x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch

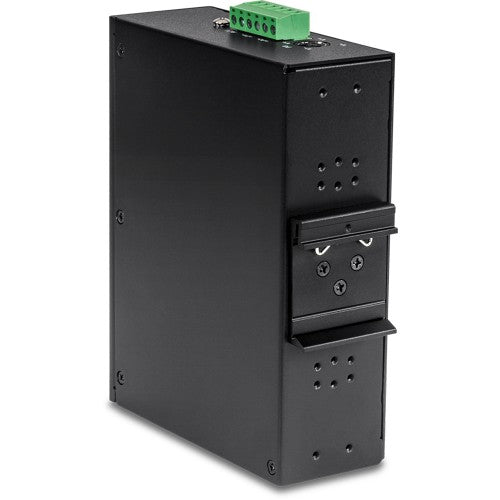

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75° C (-40° – 167° F)

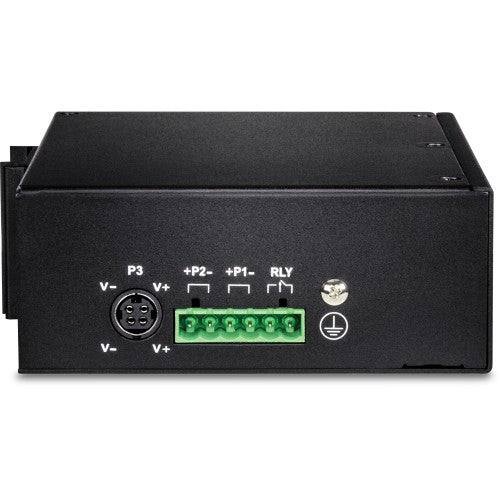

- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24048, TI-S48048)
Description
TRENDnet’s 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 23.8 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC, UL |
| Performance | |
| Mean time between failures (MTBF) | 699103 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.76 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.72" (120 mm) |
| Height | 1.89" (48 mm) |
| Weight | 17.6 oz (500 g) |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 699103 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC, UL |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
