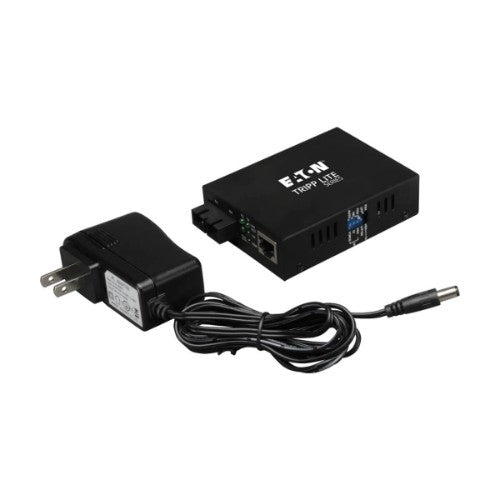

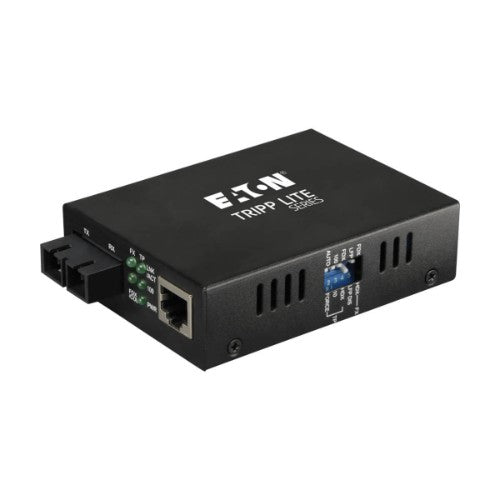

Fiber Optic - 10/100BaseT to 100BaseFX-SC Multimode Media Converter, 2km, 1310nm

Description

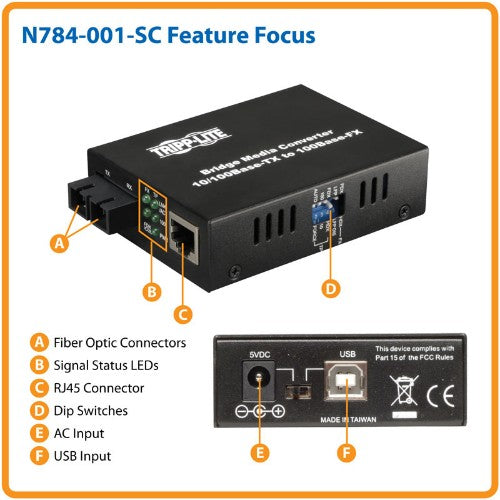

Tripp Lite's N784-001-SC 10/100 Multimode Media Converter, is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection ( switch selectable ).

- Convert UTP Ethernet to Fiber
- Supports Auto MDI/MDI-X
- Half or Full Duplex Operation
- Auto-Senses 10/100
- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
- UTP port auto-senses network speed
- Switch selectable half or full duplex operation on the fiber port
- Fiber lengths up to 2Km
- 2 Power Choices - AC-DC Adapter or USB
- 5 LED Function lights
- Uses 62.5/125 or 50/125 Multimode cable
- 3.75L x 2.75W x 1H
- Wavelength: 1310nm
- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures

Specifications

Network
Converter input interface	100Base-T
Ethernet LAN data rates	10,100 Mbit/s
Converter output interface	100Base-FX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	SC
Performance
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	62.5/125 µm
Features
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Power
Input voltage	100 - 240 V
Weight & dimensions
Width	2.76" (70.1 mm)
Depth	3.7" (94 mm)
Weight	7.41 oz (210 g)
Height	1.02" (25.9 mm)
Package depth	4.92" (125 mm)
Package width	2.17" (55.1 mm)
Package height	9.25" (235 mm)
Package weight	15.2 oz (430 g)
Packaging content
AC adapter included	Yes
Packaging data
Package depth	4.92" (125 mm)
Package width	2.17" (55.1 mm)
Package height	9.25" (235 mm)
Package weight	15.2 oz (430 g)
Technical details
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	62.5/125 µm
Internal	No
Master (outer) case GTIN (EAN/UPC)	20037332130895
Compliance certificates	RoHS
Indication
LED indicators	Yes
Design
Country of origin	China
LED indicators	Yes
Product colour	Black
Internal	No
Colour
Product colour	Black
Certificates
Compliance certificates	RoHS
Logistics data
Country of origin	China
Master (outer) case width	10" (254 mm)
Master (outer) case length	10.8" (275.1 mm)
Master (outer) case height	12" (305.1 mm)
Master (outer) case gross weight	10.6 lbs (4.79 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	20037332130895
