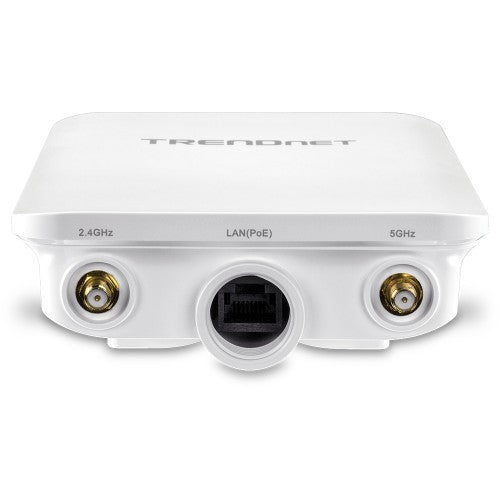

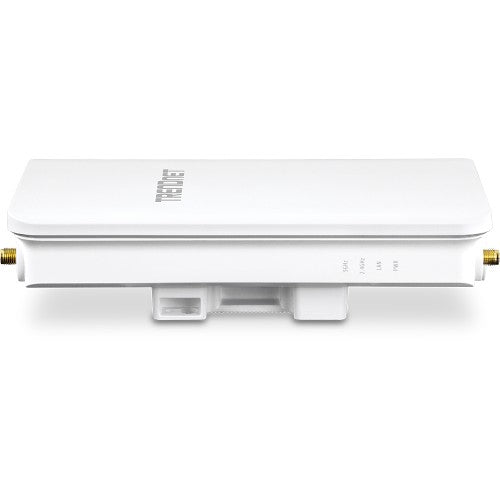

Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
Trendnet

Trendnet TEW-841APBO wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Part number: TEW-841APBO
$213.83 $219.99
Save $6.16
3% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

TEW-841APBO, 1x 1G RJ-45 LAN, 4x 5 dBi, MU-MIMO, VLAN, 2.4/5 GHz, PoE+, IP67, 111x174x38 mm

Key Features

  • Dual band Wireless AC1300 point-to-point and point-to-multi-point bridge
  • 4 x 5 dBi omni-directional antennas
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Supports IEEE 802.3at PoE+
  • IP67 outdoor weather rated housing

Description

TRENDnet’s 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point, model TEW-841APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. The wireless multi-point bridge can be powered with a PoE+ switch or PoE+ injector of your choosing. A variety of installation scenarios are facilitated with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP67 rated housing on the wireless multi-point bridge is designed for outdoor environments, and includes wall and pole mounting hardware.

Wireless Multi-Point Bridge
Use this dual band wireless AC1300 point-to-multi-point bridge to conveniently link two or more locations together with wireless AC speeds and performance.

Wireless Modes
Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes for a variety of wireless applications.

Outdoor Ready
Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -20° – 60° C (-4° – 140° F).

Concurrent Dual Band
AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands

Wireless Modes
Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes

Outdoor Rated
Durable enclosure with an IP67 outdoor weather rating

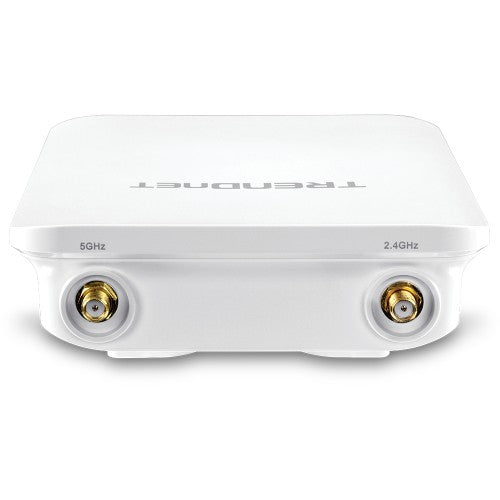

Omni-Directional Antenna
4 x 5 dBi omni-directional antennas

PoE Powered
Supports 802.3at PoE+ power input

Logs
Real time logs and statistics help troubleshooting

Encrypted Wireless
Support for wireless encryption of up to WPA2

Multiple SSID
Create up to eight dual band SSIDs with band steering capabilities

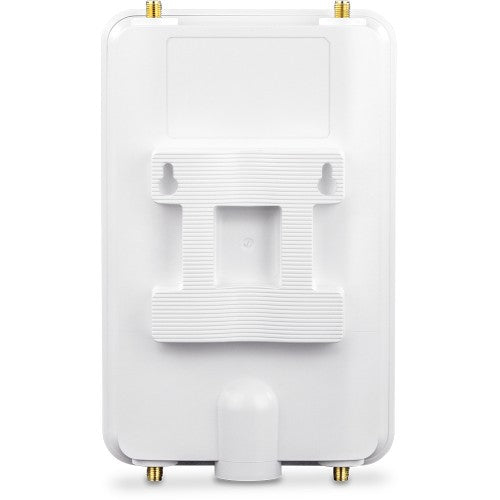

Mounting Hardware
Pole and wall mount hardware included

Compatibility
Compatible with legacy wireless devices

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1300 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Transmitting power 19 dBmW
Frequency band 2.4GHz: 2.412-2.462; 5GHz: 5.180-5.240, 5.745-5.825
Web-based management Yes
VLAN support Yes
Receiver sensitivity 802.11a: -72 dBm @ 54 Mbps 802.11b: -87 dBm @ 11 Mbps 802.11g: -72 dBm @ 54 Mbps 802.11n (2.4 GHz): -67 dBm @ 400 Mbps 802.11n (5 GHz): -61 dBm @ 400 Mbps 802.11ac: -58 dBm @ 867 Mbps
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Modulation 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, DSSS, OFDM, PSK, QPSK
Ethernet LAN data rates 10,100,1000 Mbit/s
Certification FCC IC
Maximum data transfer rate 1300 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Wireless LAN features
Frequency band 2.4GHz: 2.412-2.462; 5GHz: 5.180-5.240, 5.745-5.825
Modulation 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, DSSS, OFDM, PSK, QPSK
Network
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Management features
VLAN support Yes
Quality of Service (QoS) support Yes
Web-based management Yes
Features
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Transmitting power 19 dBmW
Frequency band 2.4GHz: 2.412-2.462; 5GHz: 5.180-5.240, 5.745-5.825
VLAN support Yes
Receiver sensitivity 802.11a: -72 dBm @ 54 Mbps 802.11b: -87 dBm @ 11 Mbps 802.11g: -72 dBm @ 54 Mbps 802.11n (2.4 GHz): -67 dBm @ 400 Mbps 802.11n (5 GHz): -61 dBm @ 400 Mbps 802.11ac: -58 dBm @ 867 Mbps
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Modulation 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, DSSS, OFDM, PSK, QPSK
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1300 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Security
Number of SSID supported 8
Security algorithms SNMP, SNMPv3, WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-RADIUS
MAC address filtering Yes
Ports & interfaces
USB 2.0 ports quantity 0
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 12.6 W
Power over Ethernet (PoE) Yes
Design
International Protection (IP) code IP67
Placement Wall
Product colour White
LED indicators Yes
Certification FCC IC
Antenna
Number of connectors 4
Antenna type External
Antenna gain level (max) 5 dBi
Antenna connector type RP-SMA
Antenna direction type Omni-directional
Technical details
Transmitting power 19 dBmW
Receiver sensitivity 802.11a: -72 dBm @ 54 Mbps 802.11b: -87 dBm @ 11 Mbps 802.11g: -72 dBm @ 54 Mbps 802.11n (2.4 GHz): -67 dBm @ 400 Mbps 802.11n (5 GHz): -61 dBm @ 400 Mbps 802.11ac: -58 dBm @ 867 Mbps
Certificates
Certification FCC IC
Indication
LED indicators Yes
Weight & dimensions
Width 4.37" (111 mm)
Depth 6.85" (174 mm)
Weight 10.7 oz (302 g)
Height 1.5" (38 mm)
Packaging data
Quick start guide Yes
Mounting kit Yes
Packaging content
Quick start guide Yes
Mounting kit Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) -22 - 60 °C
Logistics data
Quantity per pack 1 pc(s)
