2.5 Gbit/s, RJ-45, 1.8W, 84x64x18mm, 42g
TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance.
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
PCI Express
Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port
2.5GBASE-T Support
2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
VLAN Support
2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

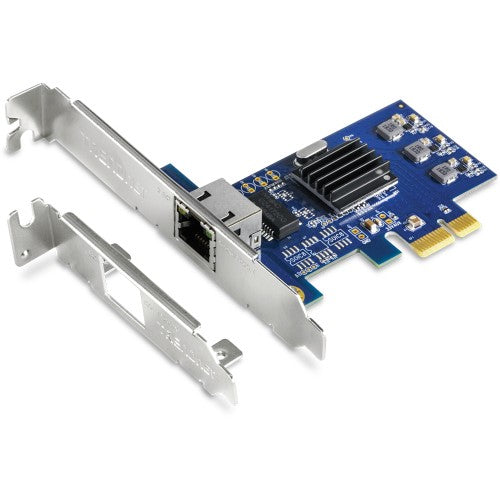

Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems
LED Indicators
LED indicators convey port status, link speed and activity
Trendnet

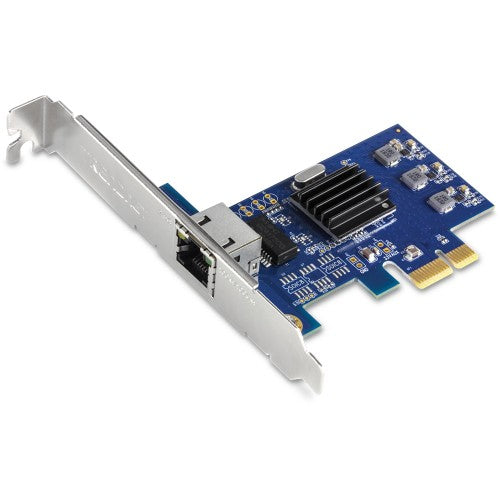

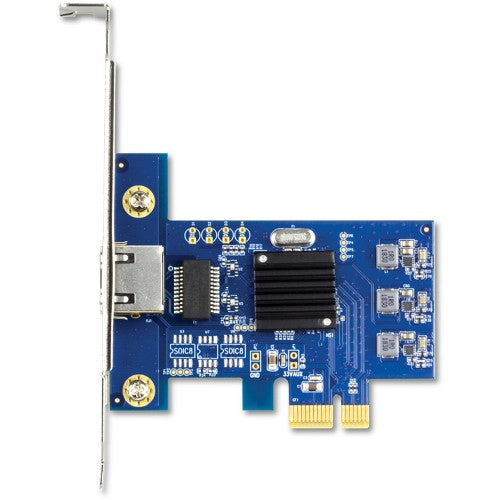

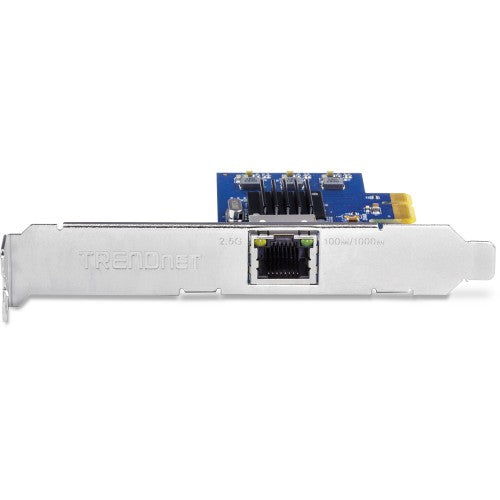

Trendnet TEG-25GECTX network card Internal Ethernet 2500 Mbit/s
Part number:
TEG-25GECTX
Sale price
$28.64
Regular price
$35.90
Save
$7.26
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Converts a PCIe slot into a 2.5G Ethernet Port
- Supports 802.1Q VLAN Tagging
- Includes standard and low-profile brackets
- Windows and Linux support
- IEEE 802.3ab and 802.3bz compliant
- Supports up to 9KB jumbo frames
Description
2.5GBASE-T PCIe Network AdapterTRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance.
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems.
2.5G Port
2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.
PCI Express
Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port
2.5GBASE-T Support
2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
VLAN Support
2.5G network adapter with IEEE 802.1Q tagged-based VLAN support
Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows, Windows Server, and Linux operating systems
LED Indicators
LED indicators convey port status, link speed and activity
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 2500 Mbit/s |
| Technical details | |
| Product colour | Blue, Silver |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Maximum data transfer rate | 2500 Mbit/s |
| Design | |
| Product colour | Blue, Silver |
| Certification | CE, FCC |
| Internal | Yes |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 1.8 W |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 40 °C |
| Weight & dimensions | |
| Width | 3.31" (84 mm) |
| Depth | 2.52" (64 mm) |
| Height | 0.709" (18 mm) |
| Weight | 1.48 oz (42 g) |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE, FCC |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Quick start guide | Yes |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 40 °C |
