Xeon Silver 4208 2,1 GHz, 16GB RDIMM DDR4-2933, 24 x 2.5", 1x LOM, 1x RAID, 1x PCIex 455 LP, 1 x USB 2.0, 3 x USB 3.0
Future defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Lenovo

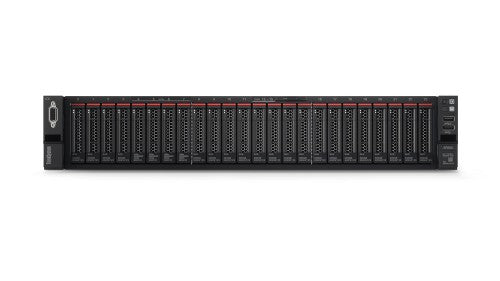

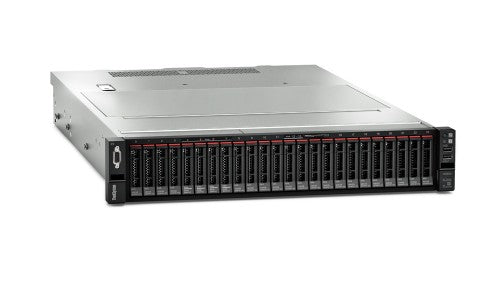

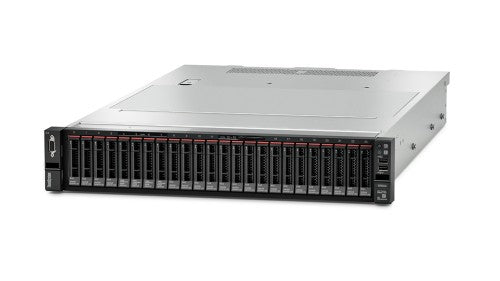

Lenovo ThinkSystem SR650 server Rack (2U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 750 W
Part number:
7X06A0FHNA
$2,664.39
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Large memory capacity
- Vast storage capacity
- Versatile storage configurations/AnyBay
- Flexible I/O & networking configurations
- Enterprise-class RAS features
- XClarity systems management
Description
Top-performing server for data centers needing scalabilityFuture defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Specifications
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 78 °C |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Processor threads | 16 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache | 11 MB |
| Processor frequency | 2.1 GHz |
| Number of processors installed | 1 |
| Processor model | 4208 |
| Processor boost frequency | 3.2 GHz |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 24 |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 3 TB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Card reader integrated | No |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Optical drive type | No |
| Number of HDDs supported | 24 |
| Maximum storage capacity | 396 TB |
| Graphics | |
| On-board graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Network | |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSELinux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Display | |
| Built-in display | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSELinux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193390 |
| Power | |
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating altitude | 0 - 120078.7" (0 - 3050 m) |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Supported HDD sizes | 2.5" |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Sustainability certificates | ENERGY STAR |
| Management features | |
| Performance management | XClarity Enterprise |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 17.5" (445 mm) |
| Height | 3.43" (87 mm) |
| Depth | 28.3" (720 mm) |
| Other features | |
| Built-in display | No |
