USB 3.0, 7-Port, PCIe, 5Gbps, USB Type-A
Siig

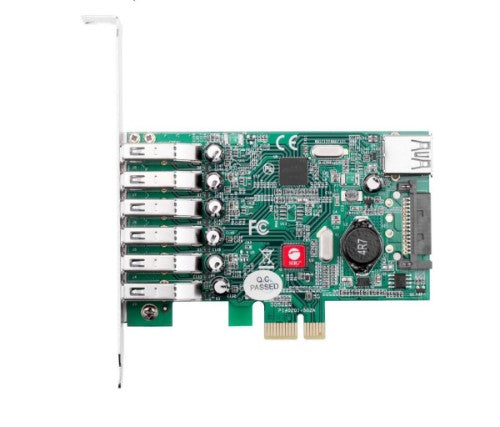

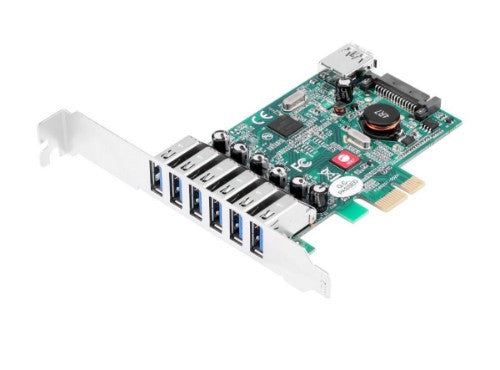

Siig JU-P70011-S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Part number:
JU-P70011-S1
Sale price
$58.21
Regular price
$95.99
Save
$37.78
39%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Adds seven SuperSpeed USB 3.0 5Gbps Type-A ports, 6 external and one internal, to your desktop system
- Industry recognized high performance Renesas uPD720201/uPD720210 chipset
- Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
- Complies with PCIe 2.0 standard
- Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
- Supports PCI Bus Power Management Interface Specification Revision 1.2

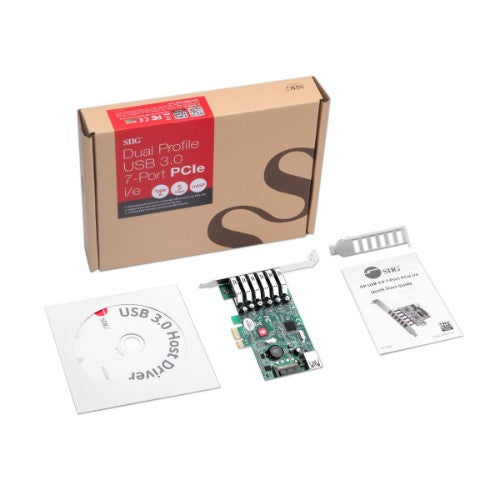

- Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
- Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
Description
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal SATA ports quantity | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 2.0 |
| Technical details | |
| Data transfer rate (max) | 5 Gbit/s |
| Performance | |
| Data transfer rate (max) | 5 Gbit/s |
| Product colour | Green |
| Colour | |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Features | |
| Data transfer rate (max) | 5 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 4.41" (112 mm) |
| Depth | 4.72" (120 mm) |
| Height | 0.909" (23.1 mm) |
| Weight | 2.4 oz (68 g) |
| Packaging data | |
| Quantity | 1 |
| Packaging content | |
| Quantity | 1 |
