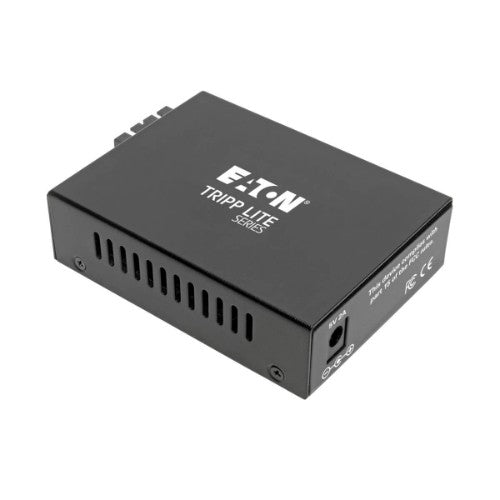

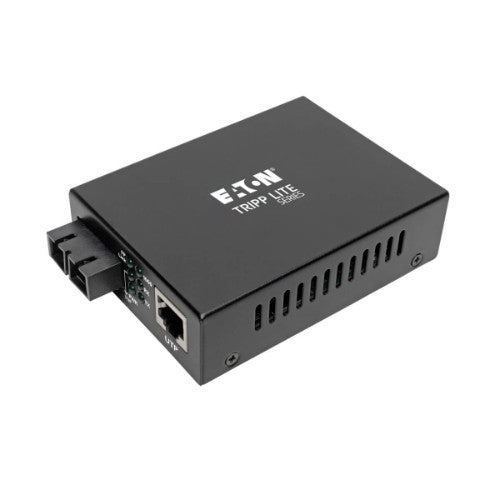

Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.)
This economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building.
Supports Auto-Sensing of Network Speed and Other Advanced Functions

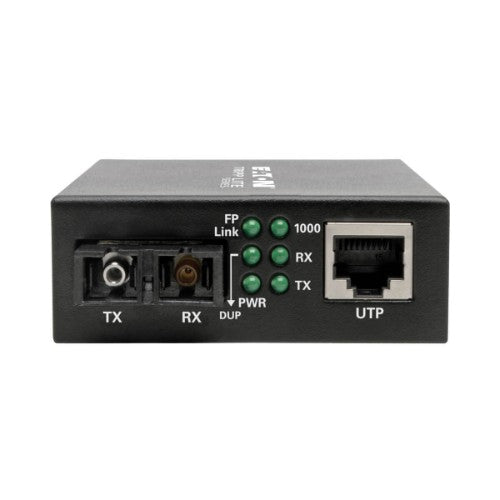

Monitoring and controlling your network nodes is easy with the N785-INT-SC-SM’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s Ethernet network and fiber link status at a glance.
Supports Singlemode Fiber Cable with SC Connectors
Two N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch.
Completely Plug-and-Play with No Additional Software Required for Connection

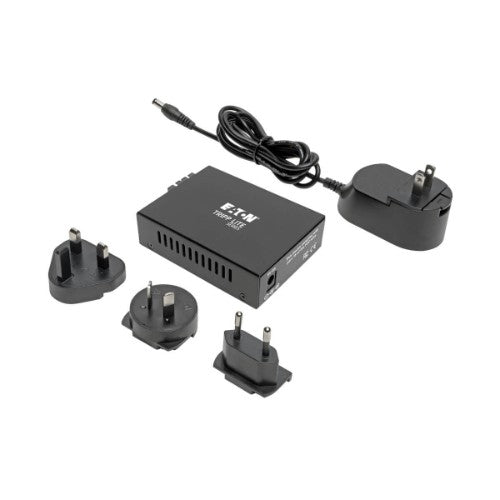

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included.
Tripp Lite
Tripp Lite N785-INT-SC-SM network media converter 1000 Mbit/s 1310 nm Single-mode Black
Part number:
N785-INT-SC-SM
Sale price
$137.53
Regular price
$271.18
Save
$133.65
49%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Extends your copper Gigabit Ethernet network past the standard 100 m limit
- Supports singlemode fiber optic cable with SC connectors
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Includes North America, U.K., Europe and Australia plug adapters
Description
Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-SC-SM’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s Ethernet network and fiber link status at a glance.
Supports Singlemode Fiber Cable with SC Connectors
Two N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a, Fiber |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Features | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

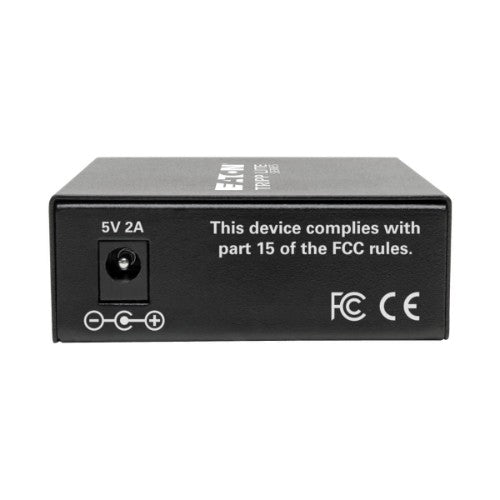

| DC-in jack | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.35 A |
| Output voltage | 5 V |
| Output current | 2 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 2.76" (70.1 mm) |
| Depth | 3.7" (94 mm) |
| Weight | 7.05 oz (200 g) |
| Height | 1.02" (25.9 mm) |
| Package depth | 5.12" (130 mm) |
| Package width | 9.45" (240 mm) |
| Package height | 2.17" (55.1 mm) |
| Package weight | 15.5 oz (440 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging data | |
| Package depth | 5.12" (130 mm) |
| Package width | 9.45" (240 mm) |
| Package height | 2.17" (55.1 mm) |
| Package weight | 15.5 oz (440 g) |
| Technical details | |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Internal | No |
| Master (outer) case GTIN (EAN/UPC) | 10037332236361 |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Country of origin | China |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 12" (304.8 mm) |
| Master (outer) case length | 10.7" (273 mm) |
| Master (outer) case height | 10" (254 mm) |
| Master (outer) case gross weight | 10.1 lbs (4.58 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332236361 |
| Harmonized System (HS) code | 85176990 |
