3440 VA / 3440 W, (8) NEMA 5-15/20R, (2) L5-20R, 2U

Description

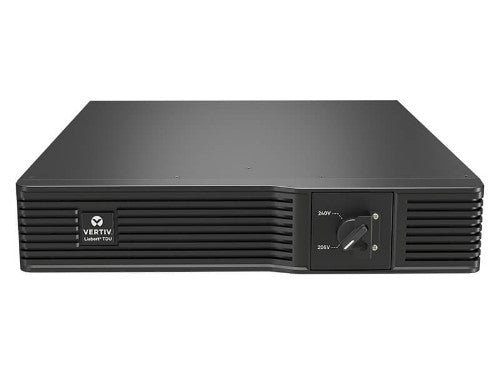

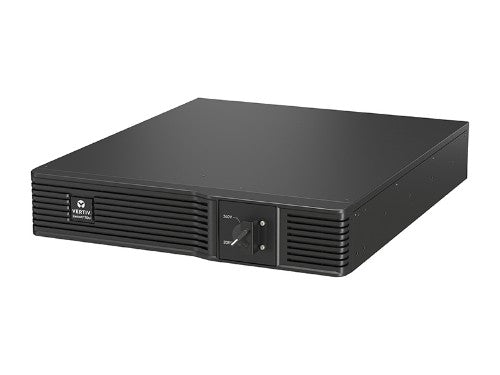

The Vertiv Liebert Transformer Distribution Unit (TDU) is a step down transformer / voltage converter that provides 120VAC output power from 208VAC or 240VAC input. It accepts 208 or 240VAC (200/220/230 VAC acceptable) input and converts it to 120VAC (L-N) output. The 3440VA/3440W TDU is designed to work with Vertiv Liebert GXT3-6000RTL630, GXT4-6000RTL630, GXT4-3000RT208, and PSI5-5000RT208 but can be used with other UPS products with 208VAC in & out, and have a compatible input power plug.

Specifications

Power
Output power	3440 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	120 V
Output operation voltage (max)	127 V
Efficiency	94%
Output power capacity	3.44 kVA
Performance
Automatic Voltage Regulation (AVR)	Yes
EMI/RFI noise filtering	Yes
Noise level	55 dB
Features
Automatic Voltage Regulation (AVR)	Yes
Output power	3440 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	120 V
Output operation voltage (max)	127 V
Efficiency	94%
EMI/RFI noise filtering	Yes
Noise level	55 dB
Output power capacity	3.44 kVA
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15, NEMA 5–20R, NEMA L5-20R
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Safety	UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs)
Housing material	Metal, Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificates	REACH, RoHS
Certificates
Compliance certificates	REACH, RoHS
Safety	UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs)
Safety regulation & standards
Safety	UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs)
Weight & dimensions
Width	16.9" (430 mm)
Height	3.35" (85 mm)
Depth	22.6" (574 mm)
