TEW-840APBO, 1G LAN, PoE, VLAN, WMM, IP56, 185x100x35 mm
Trendnet
Trendnet TEW-840APBO wireless access point 867 Mbit/s Black Power over Ethernet (PoE)
Part number:
TEW-840APBO
Sale price
$146.31
Regular price
$149.99
Save
$3.68
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5GHz WiFi AC867 point-to-point bridge
- 14 dBi directional antenna
- Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
- Proprietary PoE power adapter included
- IP56 outdoor weather rated housing
Description
TRENDnet’s 14 dBi WiFi AC867 Outdoor Directional PoE Access Point, model TEW-840APBO, is designed for point-to-point WiFi bridging applications. The outdoor wireless access point supports a variety of installation scenarios with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Transmitting power | 23 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 5.150 – 5.250, 5.725 – 5.850 |
| Web-based management | Yes |
| VLAN support | Yes |
| Receiver sensitivity | 802.11a: -71 dBm (typical) @ 54Mbps 802.11n (5GHz): -66 dBm (typical) @ 300Mbps 802.11ac: -55 dBm (typical) @ 867Mbps |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Channels quantity | 165 channels |
| Certification | FCC |
| Maximum data transfer rate | 867 Mbit/s |
| Wireless LAN features | |
| Frequency band | 5.150 – 5.250, 5.725 – 5.850 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Channels quantity | 165 channels |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Transmitting power | 23 dBmW |
| Frequency band | 5.150 – 5.250, 5.725 – 5.850 |
| VLAN support | Yes |
| Receiver sensitivity | 802.11a: -71 dBm (typical) @ 54Mbps 802.11n (5GHz): -66 dBm (typical) @ 300Mbps 802.11ac: -55 dBm (typical) @ 867Mbps |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Channels quantity | 165 channels |
| Maximum data transfer rate | 867 Mbit/s |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | AES, SSID, WDS, WEP, WPA2-Enterprise, WPA2-PSK |
| Ports & interfaces | |

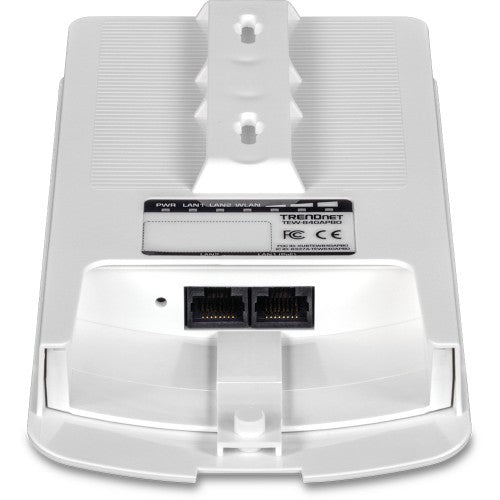

| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 9.5 W |
| Output voltage | 24 V |
| Output current | 0.6 A |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.4 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| International Protection (IP) code | IP56 |
| Product colour | Black |
| Reset button | Yes |
| Internal | No |
| LED indicators | Yes |
| Certification | FCC |
| Antenna | |
| Antenna gain level (max) | 14 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 23 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Receiver sensitivity | 802.11a: -71 dBm (typical) @ 54Mbps 802.11n (5GHz): -66 dBm (typical) @ 300Mbps 802.11ac: -55 dBm (typical) @ 867Mbps |
| Certificates | |
| Certification | FCC |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 7.28" (185 mm) |
| Depth | 3.94" (100 mm) |
| Weight | 9.45 oz (268 g) |
| Height | 1.38" (35 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 60 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
