AC867, 5 GHz, 14 dBi, 1x 1G PoE, IP56, 100–240V AC, 185x100x35 mm
Trendnet

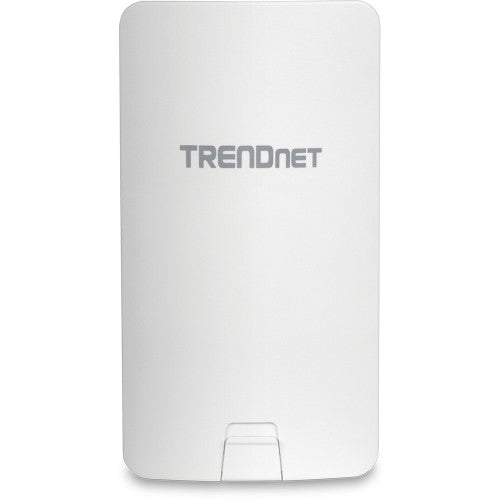

Trendnet TEW-840APBO2K bridge/repeater Network bridge 867 Mbit/s White
Part number:
TEW-840APBO2K
Sale price
$282.74
Regular price
$347.12
Save
$64.38
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5GHz WiFi AC867 point-to-point bridge kit

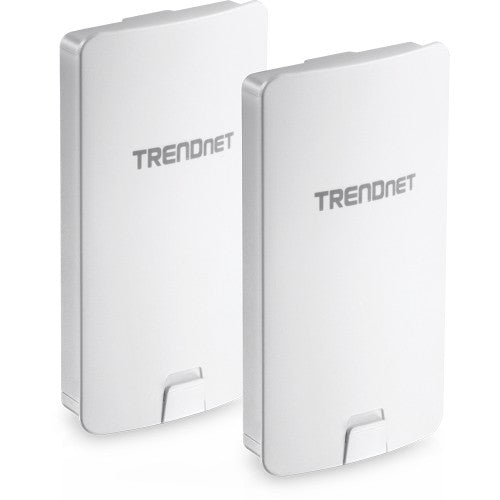

- Includes two preconfigured TEW-840APBO access points
- 14 dBi directional antennas
- Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes

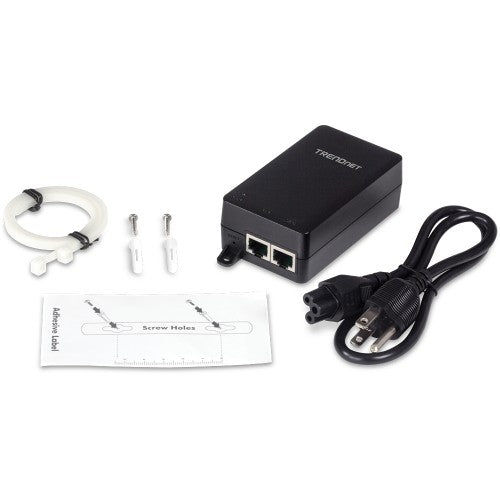

- Proprietary PoE power adapters included
- IP56 outdoor weather rated housing

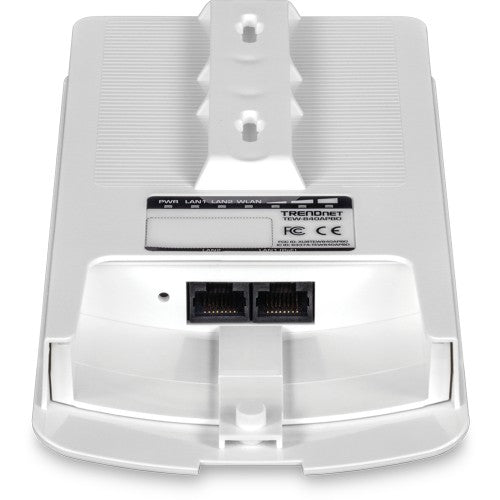

- 1 x Gigabit PoE (in) port, and 1 x Gigabit port
Description
TRENDnet’s 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-840APBO2K, provides longrange wireless AC867 point-to-point connectivity.This preconfigured outdoor WiFi bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi bridge kit conveniently links two locations together with wireless AC speed and performance. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Antenna | |
| Antenna gain level (max) | 14 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
| Signal strength | 23 dBm |
| Frequency band | FCC: 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Channels quantity | 165 channels |
| Antenna gain level (max) | 14 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Frequency band | FCC: 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz |
| Channels quantity | 165 channels |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Security | |
| Security algorithms | AES, SNMPv2, SNMPv3, SSH-2, WEP, WPA2-Enterprise, WPA2-PSK |
| Management features | |
| Web-based management | Yes |
| LED indicators | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Reset button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| International Protection (IP) code | IP56 |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.5 W |
| Power source type | AC |
| DC input voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -22 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -7.6 - 140 °F |
| Certificates | |
| Certification | CE FCC |
| Technical details | |
| Product colour | White |
| Operating temperature (T-T) | -7.6 - 140 °F |
| Quantity per pack | 2 pc(s) |
| Weight & dimensions | |
| Weight | 9.45 oz (268 g) |
| Width | 7.28" (185 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.38" (35 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
