8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
EN50155 Compliant
This M12 switch supports an input voltage range from 24 – 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Power over Ethernet (PoE+)
Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC.
Trendnet

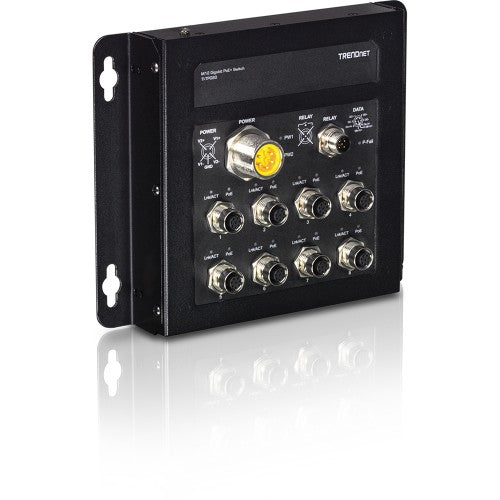

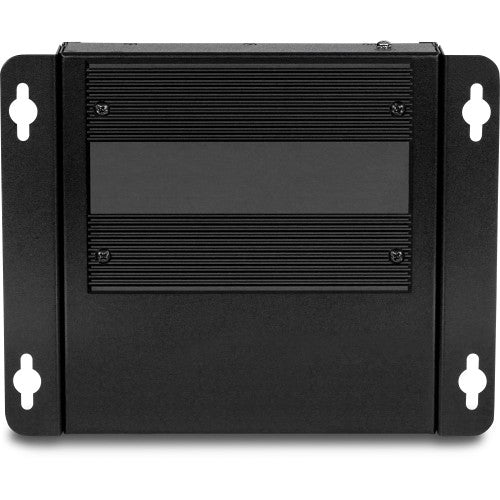

Trendnet TI-TPG80 network switch Managed Power over Ethernet (PoE) Black
Part number:
TI-TPG80
$750.13
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x M12 Gigabit PoE+ ports
- PoE power budget: 200W@48V DC; 100W@24V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP40 rated metal housing
- 16Gbps switching capacity
- Includes wall mount brackets
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Power supply sold separately (models: TI-S24048)
- M12 and M23 cables sold separately (models: TI-TCD02 / TI-TCD06 / TI-TCP02 / TI-TCR02)
Description
TRENDnet’s 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-TPG80, has eight M12 gigabit PoE+ ports with a total PoE budget of up to 200W. This M12 railway switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. This industrial M12 switch supports an input voltage range from 24 – 56V DC with M23 power interface and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications. Designed and tested for transportation and telco applications.EN50155 Compliant
This M12 switch supports an input voltage range from 24 – 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Power over Ethernet (PoE+)
Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC.
Specifications
| Performance | |
|---|---|
| Packet buffer memory | 64 MB |
| Mean time between failures (MTBF) | 500000 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 500000 h |
| Rack mounting | No |
| Management features | |
| Switch type | Managed |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 64 MB |
| MAC address table | 11000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Security | |
| MAC address filtering | Yes |
| Certificates | |
| Certification | CE FCC IEC EN 60950-1 Shock EN 60068-2-27 Freefall EN 60068-2-32 Vibration EN 60068-2-6 RailRoad EN 50155 / EN 50121-3 RailRoad EN 50155 / EN 50121-4 |
| Memory | |
| Packet buffer memory | 64 MB |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE FCC IEC EN 60950-1 Shock EN 60068-2-27 Freefall EN 60068-2-32 Vibration EN 60068-2-6 RailRoad EN 50155 / EN 50121-3 RailRoad EN 50155 / EN 50121-4 |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| DC input voltage | 24 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 200 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 8.46" (215 mm) |
| Depth | 6.69" (170 mm) |
| Height | 2.09" (53 mm) |
| Weight | 2.91 lbs (1.32 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
