4-Port USB 2.0 Cat 5 Extender over LAN
UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address – no pairing action required during installation.
A true plug-and-play solution, the UEH4102 is compatible with all leading operating systems, and supports all USB peripherals, such as keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB device. The UEH4102 harnesses the full capability of the USB 2.0 standard that provides a durable, reliable and high-quality data communication.
ATEN

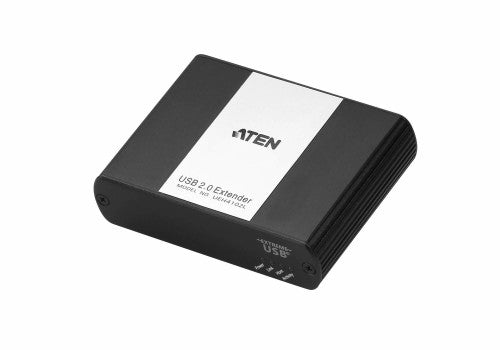

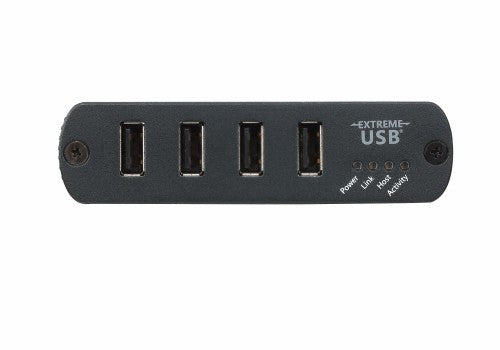

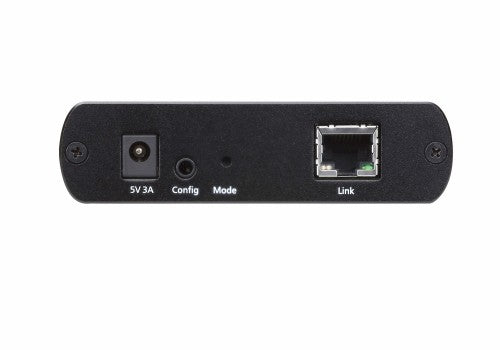

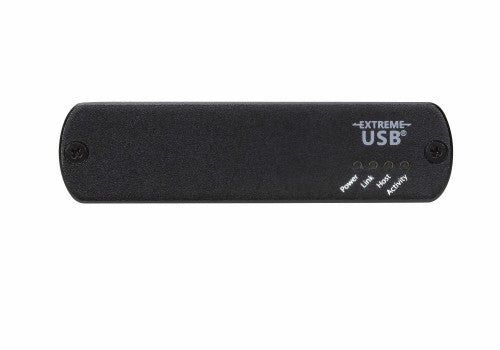

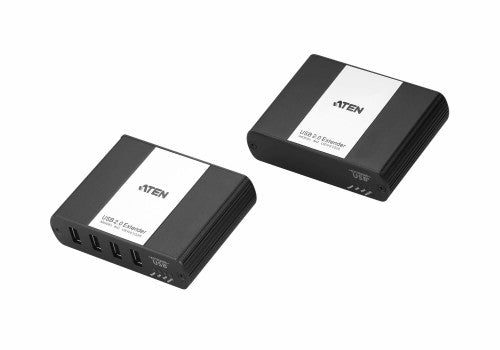

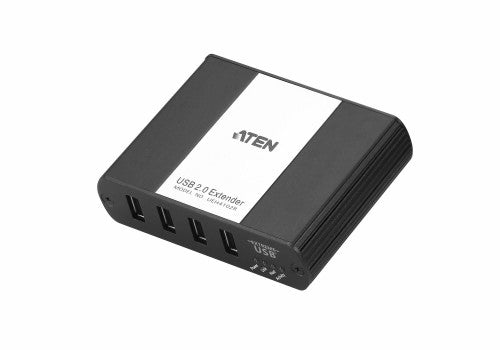

ATEN UEH4102 network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s
Part number:
UEH4102
$416.06
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Extends USB transmission over a Gigabit Ethernet Local Area Network (LAN)
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Pre-paired networked configuration through MAC Address for simple installation. No pairing action required
- Supports automatic connection link between Local and Remote units through DHCP
- Up to 100m between extender and switch and between switches over CAT 5e/6/7 cables
- Operates with all USB peripherals - flash drives, keyboards, mice, webcams, interactive whiteboards, and more
- Works with all major operating systems: Windows®, OS X®, and Linux®
Description
The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address – no pairing action required during installation.
A true plug-and-play solution, the UEH4102 is compatible with all leading operating systems, and supports all USB peripherals, such as keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB device. The UEH4102 harnesses the full capability of the USB 2.0 standard that provides a durable, reliable and high-quality data communication.
Specifications
| Performance | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 3937" (100 m) |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Technical details | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 3937" (100 m) |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Harmonized System (HS) code | 85176990 |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 5 |
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power consumption (receiver) (max) | 15 W |
| External power adapter | Yes |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 2.99" (76 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.02" (26 mm) |
| Weight | 6.7 oz (190 g) |
| Colour | |
| Product colour | Black |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
