JU-EX0311-S1, 480Mbps, USB 2.0, RJ-45, 2-pin DIP, 100-240VAC, 50/60Hz
Siig

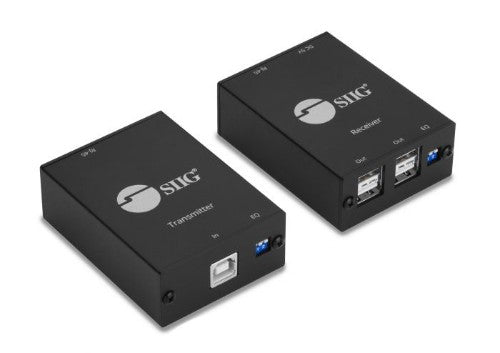

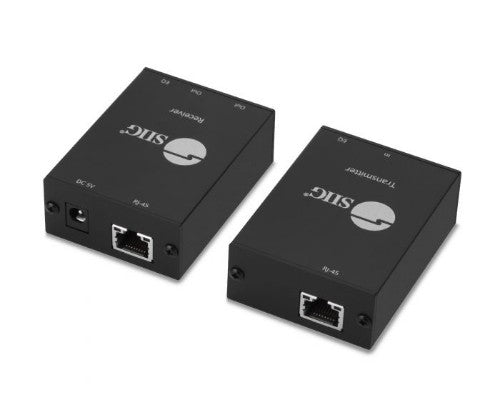

Siig JU-EX0311-S1 network extender Network transmitter Black
Part number:
JU-EX0311-S1
$68.17
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

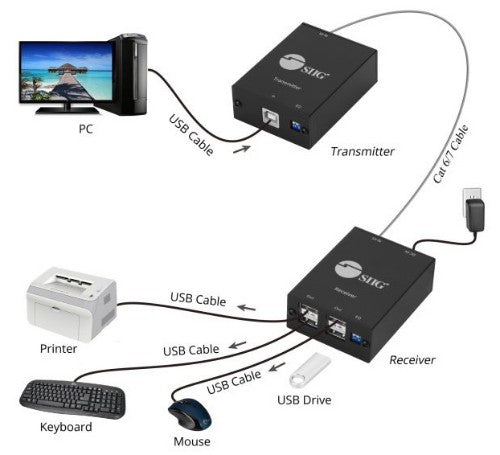

- Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices
- Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more
- Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates
- Supports USB hot-swap, Plug-and-Play, and suspend/resume features
- No driver installation needed for the extender, the USB driver is installed automatically by the operating system
- Metal housing for better RF shielding, efficient cooling, dependable performance
Description
Extends USB 2.0 device connections up to 264 feet (80 meters) over single Cat6 cableSpecifications
| Performance | |
|---|---|
| Type | Network transmitter |
| Maximum transfer distance | 3149.6" (80 m) |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat6 |
| Technical details | |
| LED indicators | Yes |
| Type | Network transmitter |
| Maximum transfer distance | 3149.6" (80 m) |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat6 |
| Compliance certificates | RoHS |

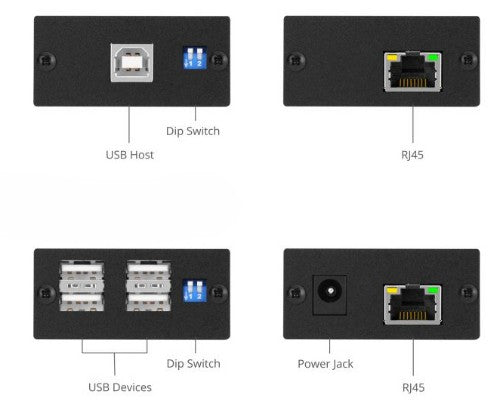

| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| DC-in jack | Yes |
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Certification | FCC, CE, TAA |
| Product colour | Black |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Output voltage | 5 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | -20 - 60% |

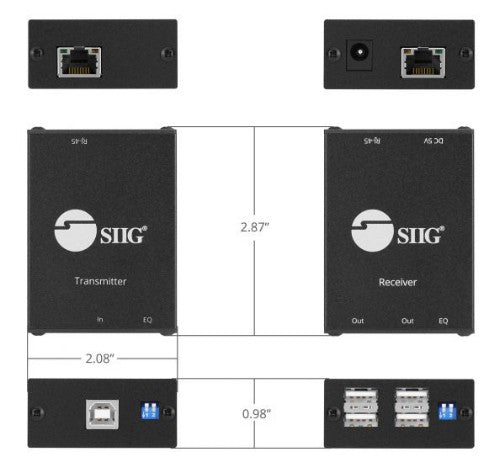

| Weight & dimensions | |
| Width | 2.76" (70.1 mm) |
| Depth | 2.13" (54.1 mm) |
| Height | 0.98" (24.9 mm) |
| Weight | 3.04 oz (86.2 g) |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE, TAA |

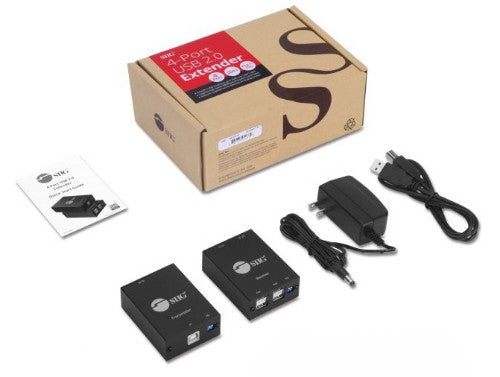

| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | USB Type-A to USB Type-B |
