660VA, 400W, 120 VAC, 60 Hz, PWM Simulated Sine Wave, 6-8 ms, 40 dBA, 305 x 158.5 x 97 mm, 9.4 kg
Energy Star certified UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient
Vertiv

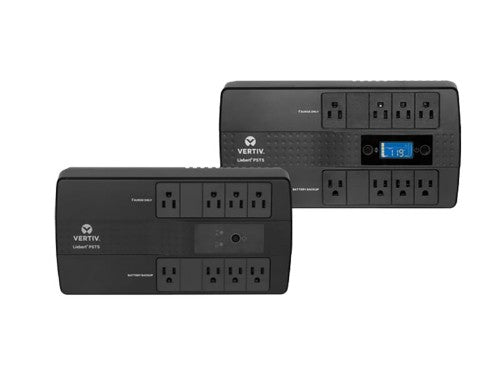

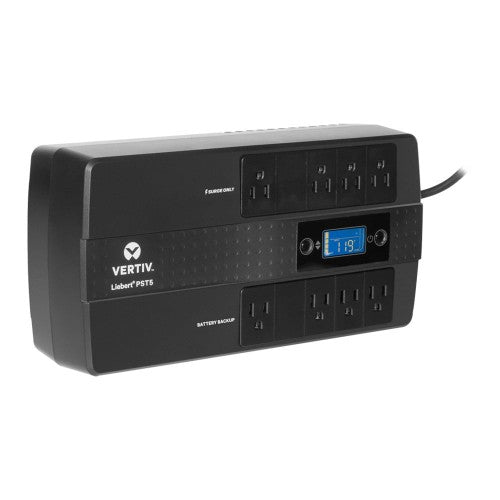

Vertiv Liebert PST5-660MT120 uninterruptible power supply (UPS) Standby (Offline) 0.66 kVA 400 W 8 AC outlet(s)
Part number:
PST5-660MT120
Sale price
$99.39
Regular price
$144.02
Save
$44.63
31%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Battery backup and surge protection functionalities
- 8 total outlets, including 4 surge only and 4 surge/backup battery outlets
- LCD panel (only on 660VA and (50VA models) in front of unit for easy monitoring source status, load capacity, battery status, and input/output voltage and frequency
- RJ11/45 for data line surge protection, advanced early warning of shutdown and EMI/RFI filters
- Three-year, full unit coverage, including battery with options for extended product warranties
Description
Protectstelevisions, desktop computers, gaming consoles, workstations, networks/routers, surveillance & other important electronicsEnergy Star certified UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient
Specifications
| Power | |
|---|---|
| Output frequency | 60 Hz |
| Output power | 400 W |
| Input operation voltage (min) | 90 V |
| Input operation voltage (max) | 145 V |
| Output operation voltage (min) | 96 V |
| Output operation voltage (max) | 145 V |
| Surge energy rating | 316 J |
| Efficiency | 95% |
| Output power capacity | 0.66 kVA |
| Input frequency | 60 Hz |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Pulse width modulation (PWM) |
| Power protection features | Over current, Overload, Short circuit |
| Noise level | 40 dB |
| Features | |
| Output frequency | 60 Hz |
| UPS topology | Standby (Offline) |
| Waveform | Pulse width modulation (PWM) |
| Output power | 400 W |
| Input operation voltage (min) | 90 V |
| Input operation voltage (max) | 145 V |
| Output operation voltage (min) | 96 V |
| Output operation voltage (max) | 145 V |
| Surge energy rating | 316 J |
| Efficiency | 95% |
| Power protection features | Over current, Overload, Short circuit |
| Noise level | 40 dB |
| Output power capacity | 0.66 kVA |
| Input frequency | 60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| USB port type | USB Type-A/USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 6 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 1 |
| Typical backup time at half load | 7 min |
| Typical backup time at full load | 2 min |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| Safety | cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Certification | RFI / EMI FCC Part 15, Class B EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 60 Hz |
| Certificates | |
| Certification | RFI / EMI FCC Part 15, Class B EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 |
| Safety | cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Safety regulation & standards | |
| Safety | cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Weight & dimensions | |
| Package width | 15" (381 mm) |
| Package depth | 10.5" (266 mm) |
| Package height | 7.99" (203 mm) |
| Weight | 20.7 lbs (9.4 kg) |
| Width | 12" (305 mm) |
| Package weight | 23.4 lbs (10.6 kg) |
| Height | 3.82" (97 mm) |
| Depth | 6.24" (158.5 mm) |
| Packaging data | |
| Package width | 15" (381 mm) |
| Package depth | 10.5" (266 mm) |
| Package height | 7.99" (203 mm) |
| Package weight | 23.4 lbs (10.6 kg) |
