BB-400, Raspberry Pi Compute Module 3+, 1 GB LPDDR2, 32 GB eMMC, Wi-Fi, RJ-45, Bluetooth, NFC, 5-30V DC, 120x99x45 mm
The BB-400 NeuronEdge combines Brainboxes proven IO and serial connectivity with a range of network connections to allow data to flow to the application of your choice. The innovative design uses a Raspberry Pi Compute module and an Arduino to provide edge processing. The Pi is supported by a power management system, including a UPS, making it match the robust demands of industry. This allows you to develop on Raspberry Pi and deploy seamlessly to the factory floor.
Multiple hardware interfaces allow for communication with many different types of equipment and machinery. Use Ethernet, Bluetooth, IO, Wi-Fi, NFC, USB, RS232/422/485 to interface with many different types of device from the compact BB-400.
The device offers the flexibility of PC systems with open source API programming options to make integration and customisation user friendly. Combining insights from machinery of all types and ages can be done through a preferred programming language, such as C# and Python or visually in Node-RED, circumventing many of the interoperability issues that have traditionally hampered integrated automation.
Brainboxes

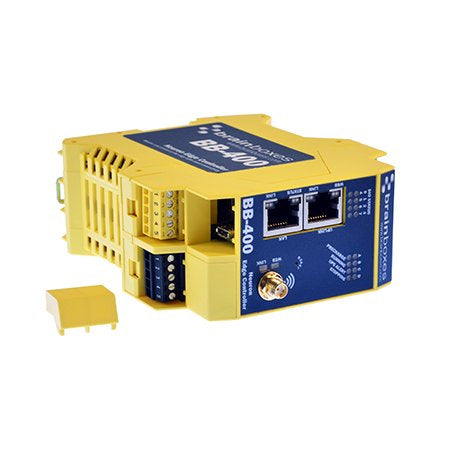

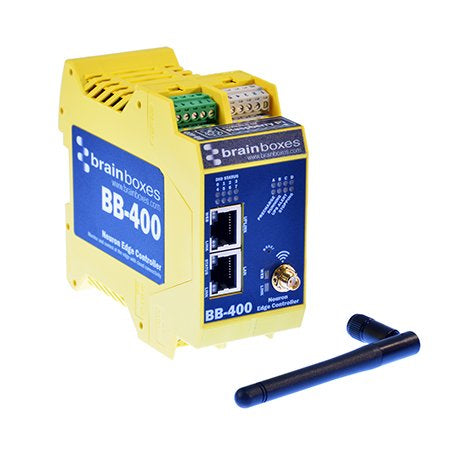

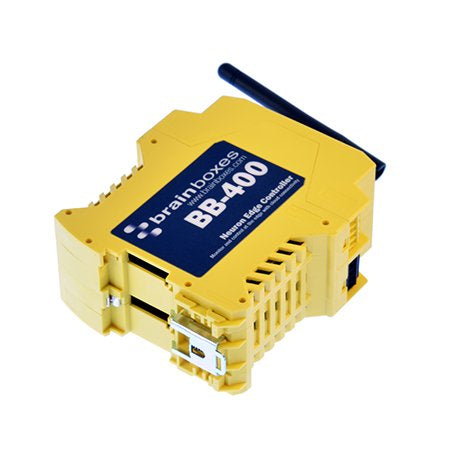

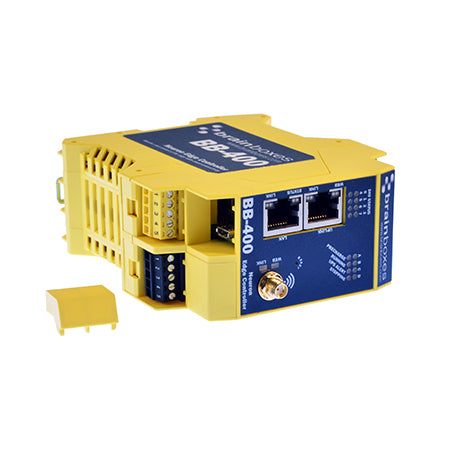

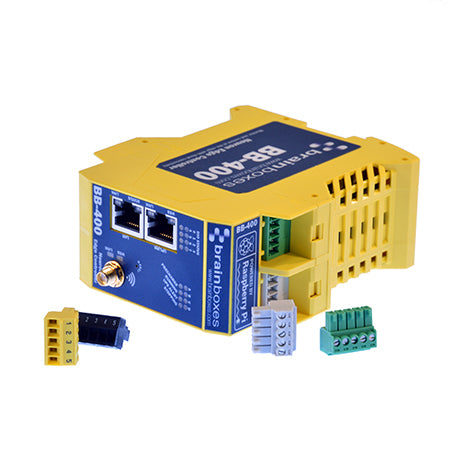

Brainboxes BB-400 gateway/controller 10, 100 Mbit/s
Part number:
BB-400
$563.26
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Industrial Edge Controller, powered by an industrialised Raspberry Pi and Arduino
- Multiple connections within compact DIN mount design
- Comes with easy to use secure web interface
- Process data locally and send to the cloud. Use our built in software or write your own with open source tools
- Develop on Pi and deploy seamlessly to Industry

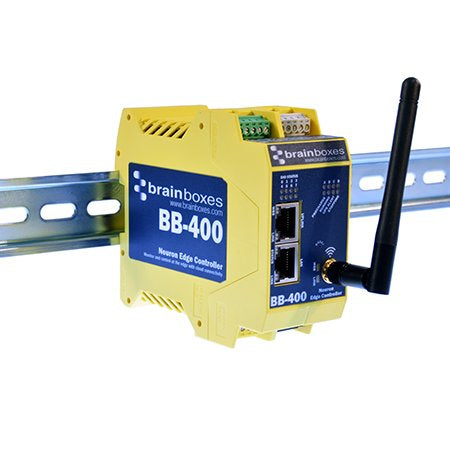

- 25°C to +80°C op temp range, 5-30VDC dual power input with built in mini UPS, DIN rail mountable
Description

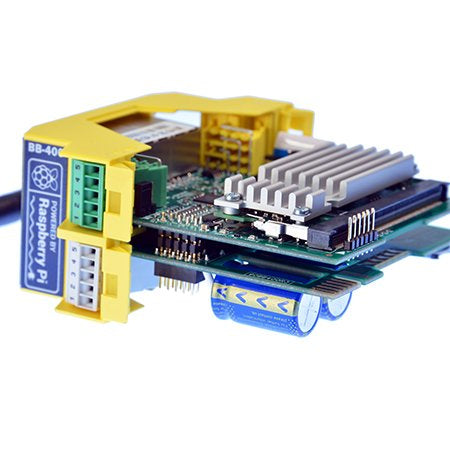

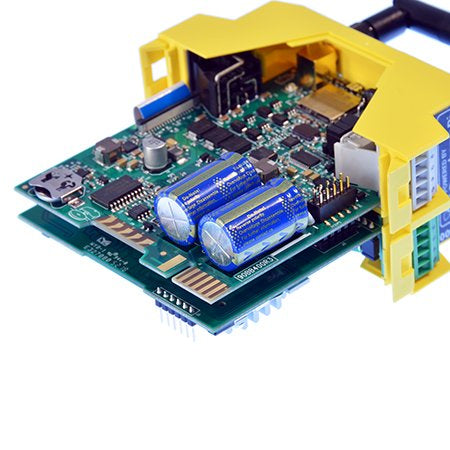

Combining industrial hardware connections with the processing power of a Raspberry Pi Compute Module 3+ the BB-400 NeuronEdge gives you the possibilities of open source software in a simple retrofit way, unlocking the potential of your equipment.The BB-400 NeuronEdge combines Brainboxes proven IO and serial connectivity with a range of network connections to allow data to flow to the application of your choice. The innovative design uses a Raspberry Pi Compute module and an Arduino to provide edge processing. The Pi is supported by a power management system, including a UPS, making it match the robust demands of industry. This allows you to develop on Raspberry Pi and deploy seamlessly to the factory floor.
Multiple hardware interfaces allow for communication with many different types of equipment and machinery. Use Ethernet, Bluetooth, IO, Wi-Fi, NFC, USB, RS232/422/485 to interface with many different types of device from the compact BB-400.
The device offers the flexibility of PC systems with open source API programming options to make integration and customisation user friendly. Combining insights from machinery of all types and ages can be done through a preferred programming language, such as C# and Python or visually in Node-RED, circumventing many of the interoperability issues that have traditionally hampered integrated automation.
Specifications
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory type | DDR2 |
| Internal memory | 1024 MB |
| Flash memory | 32000 MB |
| Control display unit | No |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.45 GHz |
| Wi-Fi | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 4 W |
| Input voltage | 5 - 30 V |
| Software | |
| Compatible operating systems | Raspberry Pi Android Linux |
| Weight & dimensions | |
| Weight | 8.75 oz (248 g) |
| Width | 4.72" (120 mm) |
| Height | 1.77" (45 mm) |
| Depth | 3.9" (99 mm) |
| Package weight | 11.8 oz (334 g) |
| Package width | 6.3" (160 mm) |
| Package height | 1.93" (49 mm) |
| Package depth | 5.31" (135 mm) |
| Packaging data | |
| Package weight | 11.8 oz (334 g) |
| Package width | 6.3" (160 mm) |
| Package height | 1.93" (49 mm) |
| Package depth | 5.31" (135 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Technical details | |
| Built-in processor | Yes |
| Wi-Fi | Yes |
| Processor frequency | 1200 MHz |
| Package weight | 11.8 oz (334 g) |
| Number of processors installed | 1 |
| Harmonized System (HS) code | 85176990 |
| Memory | |
| Internal memory type | DDR2 |
| Internal memory | 1024 MB |
| Flash memory | 32000 MB |
| Display | |
| Control display unit | No |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
