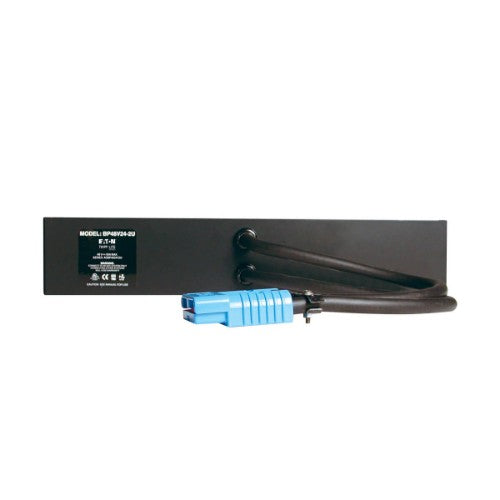

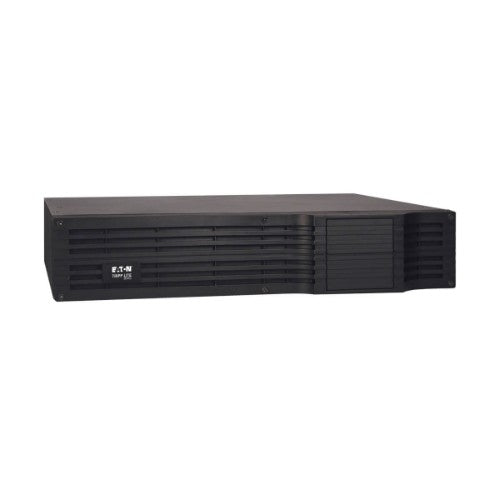

External 48V 2U Rack-mount Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U), TAA
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
48VDCSPLITTER option enables the connection of two BP48V24-2U external battery packs
NOTE: LIMIT OF 2 BP48V24-2U PER UPS (Adding one requires no accessories. Use 48VDCSPLITTER to connect two to the host UPS), SEE BP48V60RT-3U or BP48V27-2US FOR MULTI-PACK COMPATIBILITY AND TOWER MOUNTING CAPABILITY.
NOTE: When used with SMART5000XFMRXL, this battery pack must either be (1) placed in a recessed position inside the rack so the DC cable can reach the BP connector on the back of the UPS or (2) be installed with a 1-ft. (0.3 m) 48VDC extension cable BPEXT481
Tripp Lite
Tripp Lite BP48V24-2U UPS battery 48 V
Part number:
BP48V24-2U
Sale price
$779.38
Regular price
$1,434.41
Save
$655.03
46%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Extends the runtime of compatible 48V UPS Systems
- Supports 2U rack-mount installation; 4-post installation accessories included
- Options for 2-post rack-mount installation available
Description
Offers extended-run UPS operation when used in conjunction with compatible 48V DC UPS systemsIncludes heavy-gauge cabling with high-current DC connectors for simple installation
Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
48VDCSPLITTER option enables the connection of two BP48V24-2U external battery packs
NOTE: LIMIT OF 2 BP48V24-2U PER UPS (Adding one requires no accessories. Use 48VDCSPLITTER to connect two to the host UPS), SEE BP48V60RT-3U or BP48V27-2US FOR MULTI-PACK COMPATIBILITY AND TOWER MOUNTING CAPABILITY.
NOTE: When used with SMART5000XFMRXL, this battery pack must either be (1) placed in a recessed position inside the rack so the DC cable can reach the BP connector on the back of the UPS or (2) be installed with a 1-ft. (0.3 m) 48VDC extension cable BPEXT481
Specifications
| Features | |
|---|---|
| Battery voltage | 48 V |
| Certification | CE, NOM |
| Battery life | 6 year(s) |
| Product colour | Black |
| Compatibility | Tripp Lite SM2200RMDVTAA, SM2200RMXL2UTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2200VSXL, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU1500XL, SU1500XLCD, SU2200RTXL2UA, SU2200RTXLCD2U, SU2200XLA, SU2200XLCD, SUINT1500RTXL2UA, SUINT2200RTXL2UA |
| Country of origin | Taiwan |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 00037332043603 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, NOM |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 63.1 lbs (28.6 kg) |
| Width | 17.5" (444.5 mm) |
| Height | 3.5" (88.9 mm) |
| Depth | 13.5" (342.9 mm) |
| Packaging data | |
| Package width | 23.4" (594.4 mm) |
| Package height | 8.9" (226.1 mm) |
| Package depth | 19.5" (495.3 mm) |
| Package weight | 71.4 lbs (32.4 kg) |
| Logistics data | |
| Master (outer) case width | 23.4" (594.4 mm) |
| Master (outer) case length | 19.5" (495.3 mm) |
| Master (outer) case height | 8.9" (226.1 mm) |
| Master (outer) case gross weight | 65.3 lbs (29.6 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case GTIN (EAN/UPC) | 00037332043603 |
