Extended Battery Modules, 4h recharge, 30A, 240V, 3U, 433 x 132 x 660mm, 76kg
Extended Battery Module
Extends runtime and restores full backup power quickly with Fast Charge Technology.
Hot-Swappable Batteries
Can be replaced without powering down vital equipment.
Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Smart Battery Management
Uses the UPS three-cycle charging mode that improves battery life and reduces generated heat.
Plug-and-Play DC Connectors
Allows for daisy-chaining additional EBMs to a UPS system.
Resettable AC Fast Charge Circuit Breaker
Resets the EBM swiftly in case of an overload.
Rack/Tower Configuration
Allows for horizontal rackmount or vertical tower installation.
Cyberpower

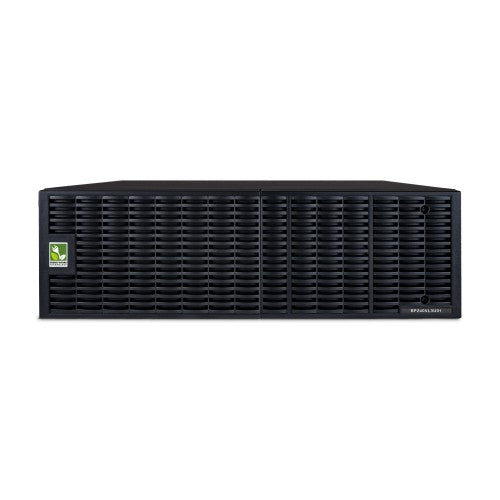

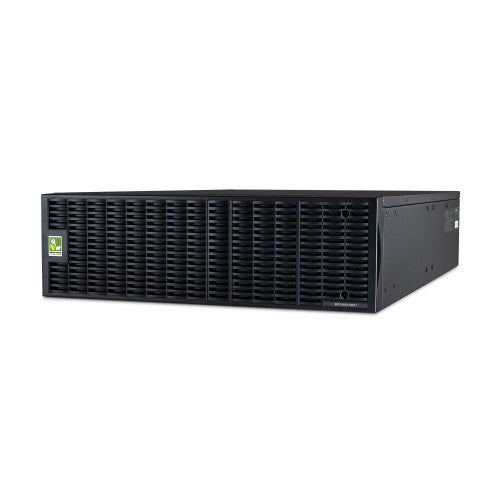

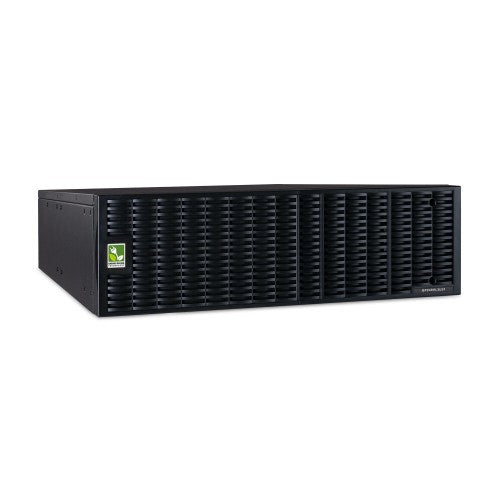

CyberPower BP240VL3U01 UPS battery Sealed Lead Acid (VRLA) 12 V
Part number:
BP240VL3U01
Sale price
$1,684.39
Regular price
$2,438.64
Save
$754.25
31%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Typical recharge time (0-90%): 4 hours
- Battery type & quantity: 12V/7AH (20)
- Form factor: Rack/Tower
- Hot swappable: Yes
- Fast Charge Technology: Yes
Description
The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. The BP240VL3U01 is compatible with OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, and OL10KRTHW. With a three-year warranty, you can trust CyberPower’s commitment to the quality of the BP240VL3U01.Extended Battery Module
Extends runtime and restores full backup power quickly with Fast Charge Technology.
Hot-Swappable Batteries
Can be replaced without powering down vital equipment.
Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Smart Battery Management
Uses the UPS three-cycle charging mode that improves battery life and reduces generated heat.
Plug-and-Play DC Connectors
Allows for daisy-chaining additional EBMs to a UPS system.
Resettable AC Fast Charge Circuit Breaker
Resets the EBM swiftly in case of an overload.
Rack/Tower Configuration
Allows for horizontal rackmount or vertical tower installation.
Specifications
| Features | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Certification | UL 1778 CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Hot-swap battery | Yes |
| Number of batteries included | 20 pc(s) |
| Product colour | Black |
| Compatibility | OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, OL10KRTHW |
| Battery recharge time | 4 h |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 167.6 lbs (76 kg) |
| Width | 17" (433 mm) |
| Height | 5.2" (132 mm) |
| Depth | 26" (660 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
