Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
  • Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Trendnet

Trendnet TEW-826DAP wireless access point 867 Mbit/s White Power over Ethernet (PoE)

Part number: TEW-826DAP
$147.02 $179.54
Save $32.52
18% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

AC2200 Tri-Band PoE+ Indoor Wireless Access Point

Key Features

  • High performance AC2200 PoE+ WiFi access point
  • Wireless AC wave 2 MU-MIMO technology boosts performance in a busy environment
  • Three concurrent WiFi bands maximize device networking speeds
  • AC2200 Tri-Band: 867Mbps (5GHz1) + 867Mbps (5GHz2) + 400Mbps (2.4GHz) bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Optional cloud management with TRENDnet Hive (Additional fee applies)
  • 1 x Gigabit PoE+ LAN port, 1 x Gigabit LAN port
  • Low-profile housing blends into most environments

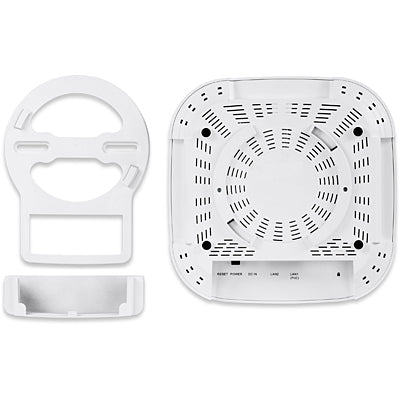

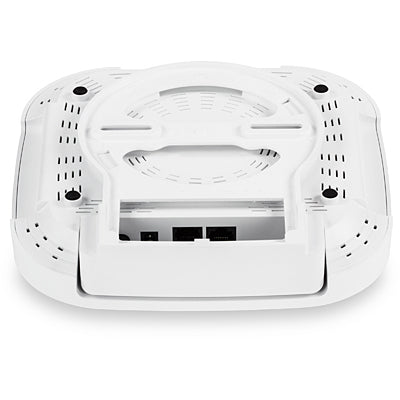

  • Includes wall / ceiling mounting plate with cable guard
  • Captive portal for hotspot applications
  • Compatible with TRENDnet’s TEW-WLC100 and TEW-WLC100P wireless controllers
  • NDAA / TAA compliant (U.S. and Canada only)

Description

TRENDnet’s high performance AC2200 Tri-Band PoE+ Indoor Wireless Access Point, model TEW-826DAP, features three concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ac networks (5GHz1: 867Mbps / 5GHz2: 867Mbps), and a 400Mbps Wireless N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi access point when multiple devices access the network. The WiFi access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate with cable guard. The TEW-826DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes

Specifications

Data transmission
Ethernet LAN data rates 1000 Mbit/s
Maximum data transfer rate 867 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
On/off switch Yes
Transmitting power 29.55 dBmW
Reset button Yes
Bandwidth 5.825 GHz
Web-based management Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Ethernet LAN data rates 1000 Mbit/s
Channels quantity 140 channels
Certification CE. FCC. IC
Maximum data transfer rate 867 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Wireless LAN features
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Channels quantity 140 channels
Network
Internal No
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Bandwidth
Bandwidth 5.825 GHz
Management features
Quality of Service (QoS) support Yes
Web-based management Yes
Features
2.4 GHz Yes
5 GHz Yes
Transmitting power 29.55 dBmW
Bandwidth 5.825 GHz
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Ethernet LAN data rates 1000 Mbit/s
Channels quantity 140 channels
Maximum data transfer rate 867 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Security
Security algorithms SNMP, SNMPv3, WEP, WPA, WPA2-PSK, WPA2-RADIUS
MAC address filtering Yes
Service Set Identifier (SSID) features Hidden SSID
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (max) 18.96 W
Output voltage 12 V
Output current 2 A
Power over Ethernet (PoE) Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Design
International Protection (IP) code IP30
Placement Ceiling, Wall
On/off switch Yes
Product colour White
Reset button Yes
Internal No
LED indicators Yes
Certification CE. FCC. IC
Cable length 59.1" (1.5 m)
Antenna
Antenna gain level (max) 4 dBi
Antenna features Integrated antenna
Technical details
Transmitting power 29.55 dBmW
Reset button Yes
Cable length 59.1" (1.5 m)
Certificates
Certification CE. FCC. IC
Indication
LED indicators Yes
Weight & dimensions
Width 8.43" (214 mm)
Depth 1.42" (36 mm)
Weight 24.1 oz (684 g)
Height 8.43" (214 mm)
Packaging data
Quick start guide Yes
Mounting kit Yes
PoE adapter included Yes
Cables included LAN (RJ-45)
Packaging content
Quick start guide Yes
Mounting kit Yes
PoE adapter included Yes
Cables included LAN (RJ-45)
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 40 °C
