DGS-3130-30S, 24x SFP, 2x 10GBASE-T, 4x 10G SFP+, 168 Gbps, 125 Mpps, 440x250x44 mm
Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.
Comprehensive Security Features
The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.
Power over Ethernet Support
The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.
Versatile Traffic Management
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.
D-Link

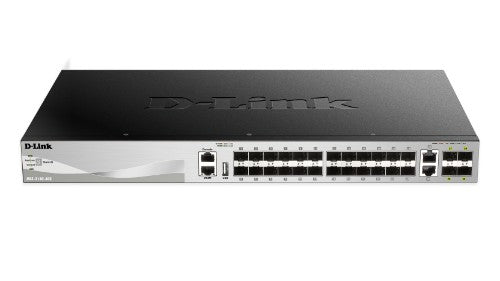

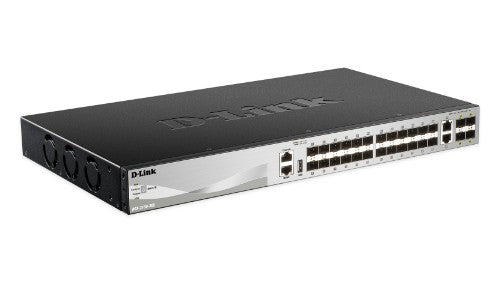

D-Link DGS-3130-30S network switch Managed L3 Black, Gray
Part number:
DGS-3130-30S
Sale price
$1,102.32
Regular price
$1,519.99
Save
$417.67
27%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to help connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast and enhanced security features, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provide 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provide 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provide 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the IEEE 802.3af and IEEE 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 redundant power supply. The switches are also equipped with a USB 2.0 port, allowing the user to boot images and upload configuration files directly, as well as conveniently save syslog files to an USB 2.0 storage device.Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.
Comprehensive Security Features
The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.
Power over Ethernet Support
The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.
Versatile Traffic Management
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737 |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | SFP, SFP+ |
| Power connector | AC-in jack |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Jumbo frames | 9000 |
| Packet buffer memory | 2 MB |
| MAC address table | 16384 entries |
| Switching capacity | 168 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 125 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP, SFP+ |
| Performance | |
| Packet buffer memory | 2 MB |
| Stackable | Yes |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Noise level | 54 dB |
| Mean time between failures (MTBF) | 487153 h |
| Power | |
| Power connector | AC-in jack |
| Power consumption (max) | 82.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Technical details | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Product colour | Black, Gray |
| Stackable | Yes |
| Noise level | 54 dB |
| Mean time between failures (MTBF) | 487153 h |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Access Control List (ACL) rules | 2048 |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv3, SSH-2, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | RIP |
| Certificates | |
| Safety | CB, cUL, BSMI, CCC |
| Certification | FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC |
| Memory | |
| Packet buffer memory | 2 MB |
| Design | |
| Safety | CB, cUL, BSMI, CCC |
| Product colour | Black, Gray |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC |
| Number of fans | 3 fan(s) |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 281.16 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 9.84" (250 mm) |
| Height | 1.73" (44 mm) |
| Weight | 7.08 lbs (3.21 kg) |
