U Fiber, OLT, MIPS 1004Kc 880 Mhz, 256 Mbyte DDR3, 256M Byte NAND, 8 x GPON OLT SFP, 2 x 1G/10G SFP+
Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.
Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.
Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Ubiquiti

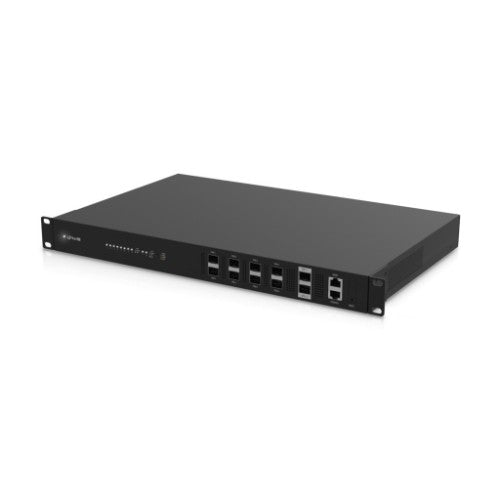

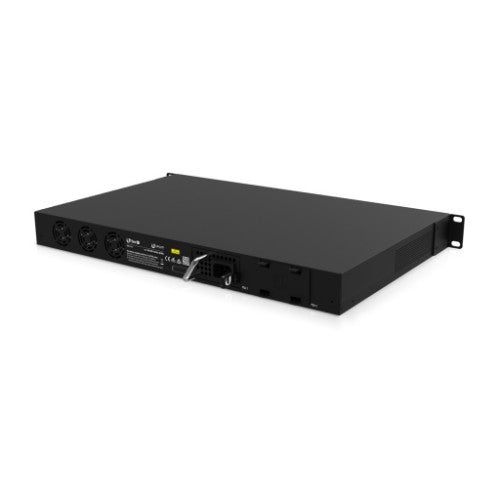

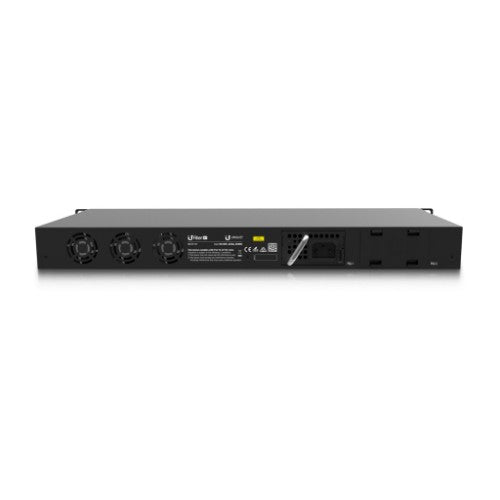

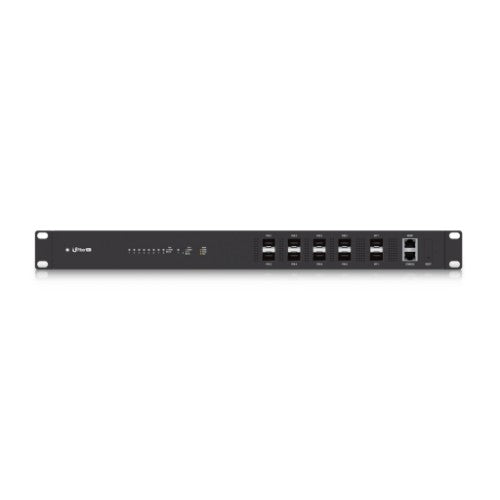

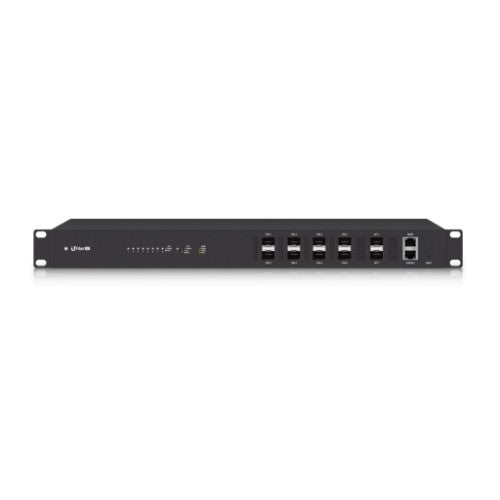

Ubiquiti U Fiber, OLT Managed 1U Black
Part number:
UF-OLT
$1,864.41
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Centralized ManagementEasily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.
Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.
Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 8 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| Network | |
| 10G support | Yes |
| Optical fiber | |
| Wavelength | 1490 nm |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Performance | |
| Processor frequency | 880 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 40 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Input voltage | 25 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 11.2" (285.6 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 9.7 lbs (4.4 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 880 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Certificates | |
| Certification | CE, FCC, IC |
| Other features | |
| Input voltage | 25 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
