5 x 10/100 Fast Ethernet, Din rail mounted, 5V - 30V DC, Black
Brainboxes

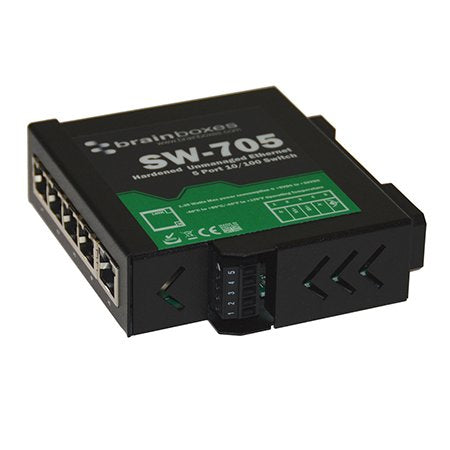

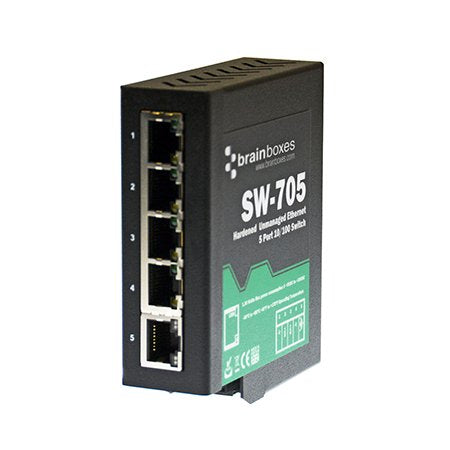

Brainboxes SW-705 network switch Unmanaged Fast Ethernet (10/100) Black
Part number:
SW-705
Sale price
$109.48
Regular price
$120.87
Save
$11.39
9%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 Port Hardened Ethernet Switch

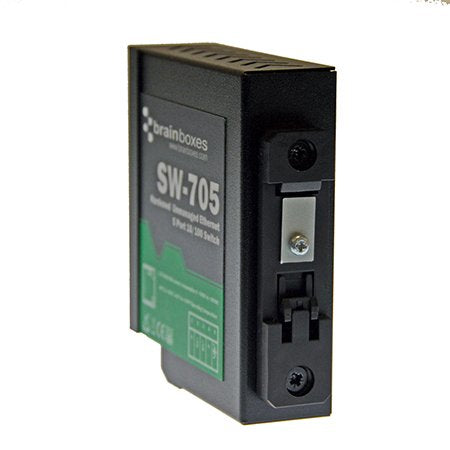

- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Description
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.Specifications
| Power | |
|---|---|
| Power connector | DC-in jack |
| Power consumption (max) | 1.35 W |
| DC input voltage | 5 - 30 V |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| 10G support | No |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Design | |
| International Protection (IP) code | IP20 |
| Product colour | Black |
| LED indicators | Activity, Link |
| Housing material | Metal |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Activity, Link |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 3.9" (99 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.14" (29 mm) |
| Weight | 9.52 oz (270 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 11.9 oz (338 g) |
| Packaging content | |
| Quick start guide | Yes |
