8 x 10/100 Fast Ethernet, Din rail mounted, 5V - 30V DC, Black
Brainboxes

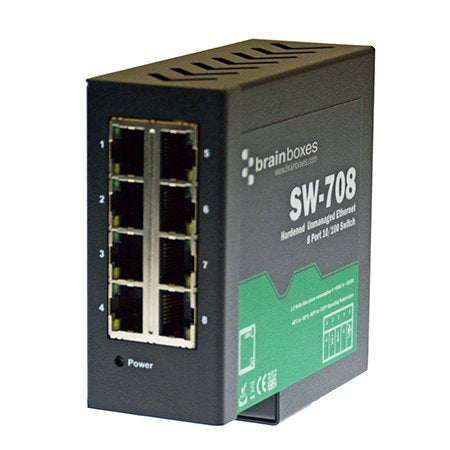

Brainboxes SW-708 network switch Unmanaged Fast Ethernet (10/100) Black
Part number:
SW-708
$143.51
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Hardened 8 Port Ethernet Switch
- Integrated DIN Rail Mount
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- No software required
- Lifetime Warranty and Support
Description
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.Specifications
| Power | |
|---|---|
| Power connector | DC-in jack |
| Power consumption (max) | 1.5 W |
| DC input voltage | 5 - 30 V |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| 10G support | No |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Design | |
| International Protection (IP) code | IP20 |
| Product colour | Black |
| LED indicators | Activity, Link |
| Housing material | Metal |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Activity, Link |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 4.92" (125 mm) |
| Depth | 4.33" (110 mm) |
| Height | 1.77" (45 mm) |
| Weight | 15.2 oz (431 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 15.6 oz (443 g) |
| Packaging content | |
| Quick start guide | Yes |
