5-Port Gigabit EdgeSmart PoE+ Switch
Trendnet

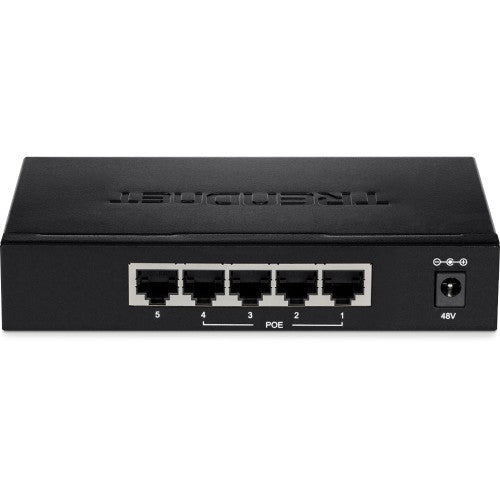

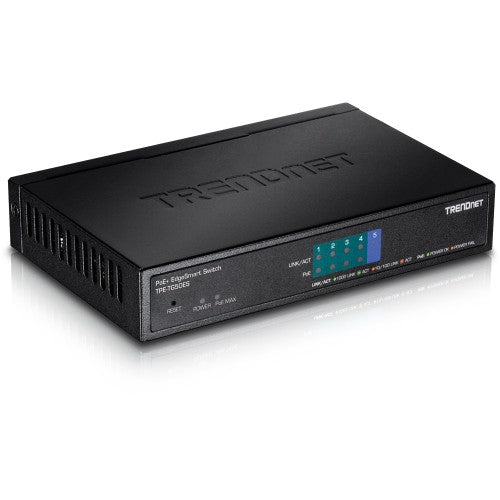

Trendnet TPE-TG50ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TPE-TG50ES
Sale price
$79.17
Regular price
$95.75
Save
$16.58
17%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4 x Gigabit PoE+ ports
- 1x Gigabit port
- 31W PoE power budget
- Easy-to-use web-based management interface
- Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
Description
TRENDnet's 5-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG50ES, is a cost-effective desktop managed switch solution for high-speed gigabit PoE+ applications. This 5-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG50ES provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.125 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10000 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Number of VLANs | 32 |
| Security | |
| Security algorithms | SNMP |
| IGMP snooping | Yes |
| Queue scheduling algorithms | SP, WFQ |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC |
| Performance | |
| Mean time between failures (MTBF) | 2942586 h |
| Firmware upgradeable | Yes |
| Packet buffer memory | 0.125 MB |
| Power | |
| Power consumption (max) | 34 W |
| Power supply included | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.75 A |
| DC input voltage | 48 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 31 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 3.86" (98 mm) |
| Height | 1.1" (28 mm) |
| Weight | 13.4 oz (380 g) |
| Packaging content | |
| Quick start guide | Yes |

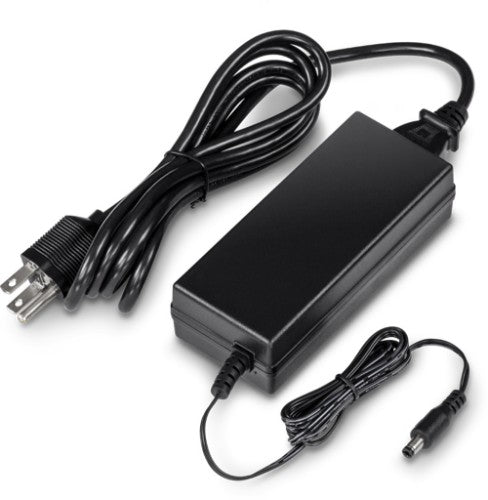

| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 2942586 h |
| Firmware upgradeable | Yes |
| Memory | |
| Packet buffer memory | 0.125 MB |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
