JU-DK0811-S1, DP 1.2, HDMI, USB 3.1, RJ-45, AC 100-240V/50-60Hz
Siig
Siig JU-DK0811-S1 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Part number:
JU-DK0811-S1
Sale price
$81.11
Regular price
$189.95
Save
$108.84
57%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
- Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort

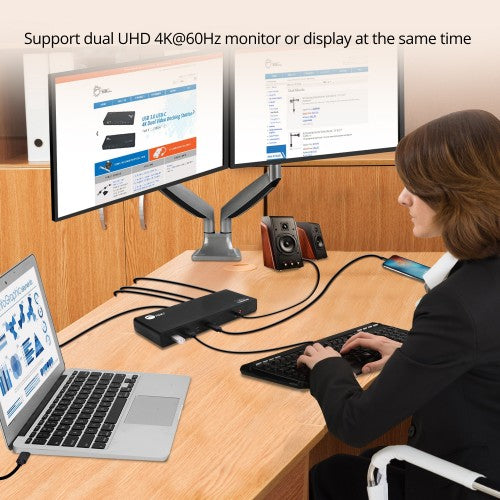

- Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
- USB-C PD Charging - Supports up to 60W power output to charge your laptop
- Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
- Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices
- Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
- Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
- OS Compatibility - Supports various Windows and Mac computers
Description
Advanced docking station adds DisplayPort, HDMI, USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptopSpecifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Full duplex | Yes |
| On/off switch | Yes |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | No |
| Charging function | Yes |
| Certification | FCC, CE |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| USB data transfer rates | 5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Charging function | Yes |
| Compliance certificates | RoHS |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 20 V |
| Output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Weight | 12.3 oz (349.3 g) |
| Width | 3.15" (80 mm) |
| Depth | 8.78" (223 mm) |
| Height | 1.02" (25.9 mm) |
| Design | |
| Country of origin | China |
| Product colour | Black |
| Certification | FCC, CE |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | FCC, CE |
| Other features | |
| USB data transfer rates | 5000 Mbit/s |
