Industrial Embeddable 4 Port Ethernet Switch
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Brainboxes

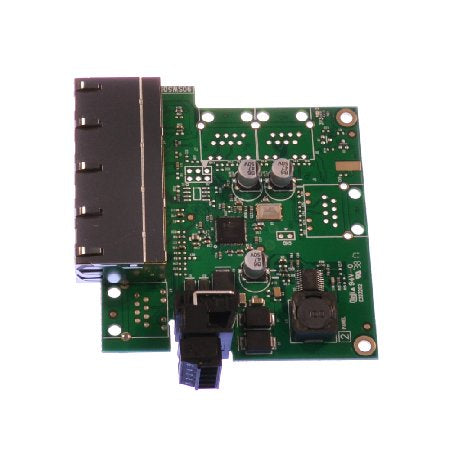

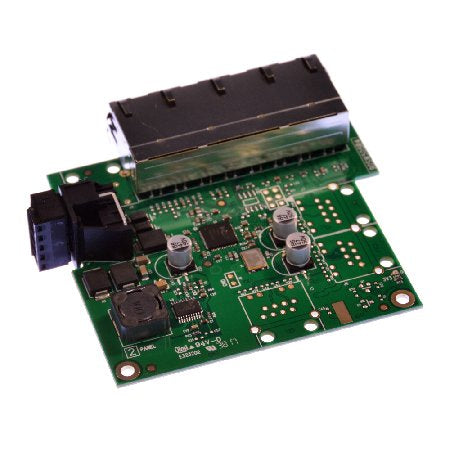

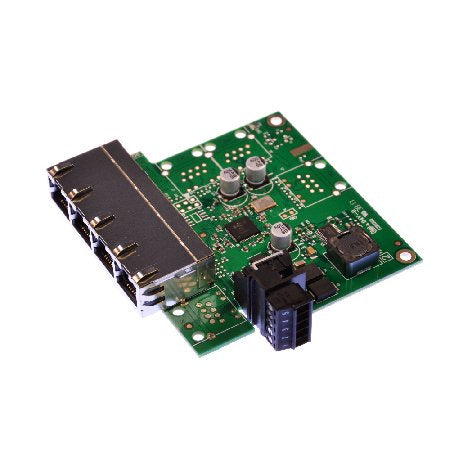

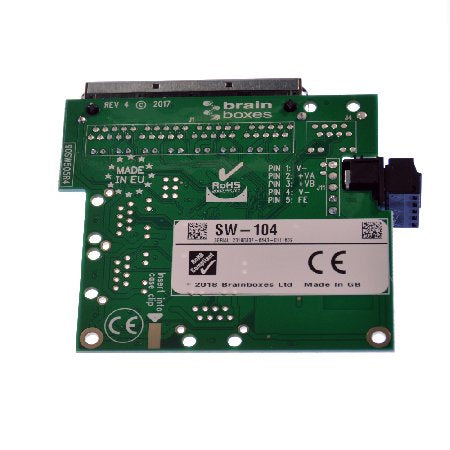

Brainboxes SW-104 network switch Fast Ethernet (10/100) Green
Part number:
SW-104
Sale price
$67.98
Regular price
$69.92
Save
$1.94
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
DescriptionIndustrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Specifications
| Technical details | |
|---|---|
| Product colour | Green |
| Rack mounting | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Design | |
| Product colour | Green |
| Rack mounting | No |
| Power | |
| Power consumption (typical) | 1.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 3.74" (95 mm) |
| Depth | 3.35" (85 mm) |
| Height | 0.787" (20 mm) |
| Weight | 2.15 oz (61 g) |
| Packaging data | |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 2.89 oz (82 g) |
