HP Designjet Z9+dr 44-in PostScript Printer with V-Trimmer, Thermal inkjet, 2400 x 1200 DPI, PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, Cyan, Photo black, Matte black, Magenta, Yellow, 2400 x 1200 DPI, 1118 x 1676 mm
Print up to 2.5 times faster[4] without losing quality, with 2400 nozzle-per-inch high-definition printheads.
Spend less time on media changes and adjustments with dual roll support and automatic roll switching.[3]
No disruption to your workflow, keep using your current RIPs, validated with HP RIP certification program.[6]
Get remote visibility and control to better manage your print production environment with HP PrintOS.
Enjoy one-click printing that also helps reduce media waste using HP Click printing software.[7]
No need for light inks using new high-definition HP printheads with dual drop technology.
Achieve expanded gamut with RGB HP Vivid Photo Inks and the embedded spectrophotometer.[1]
Get superior gloss uniformity by upgrading your printer to include HP Gloss Enhancer.[2]
HP

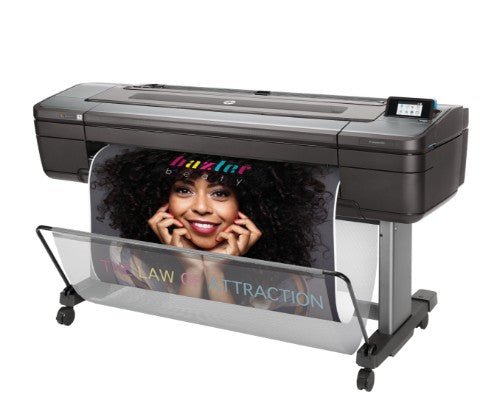

HP Designjet Z9+dr 44-in PostScript Printer with V-Trimmer
Part number:
X9D24A#B1K
$7,657.12
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
Reasons To Buy
FAST—Work without delays
Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer.[3]Print up to 2.5 times faster[4] without losing quality, with 2400 nozzle-per-inch high-definition printheads.
Spend less time on media changes and adjustments with dual roll support and automatic roll switching.[3]
SIMPLE—New tools for you and your customers
Easily design applications from posters to banners and canvas with the HP Applications Center.[5]No disruption to your workflow, keep using your current RIPs, validated with HP RIP certification program.[6]
Get remote visibility and control to better manage your print production environment with HP PrintOS.
Enjoy one-click printing that also helps reduce media waste using HP Click printing software.[7]
AMAZING—Deliver high quality with confidence
Impress the most demanding customers with smooth transitions and sharp details thanks to HP Pixel Control.No need for light inks using new high-definition HP printheads with dual drop technology.
Achieve expanded gamut with RGB HP Vivid Photo Inks and the embedded spectrophotometer.[1]
Get superior gloss uniformity by upgrading your printer to include HP Gloss Enhancer.[2]
Description
HP Designjet Z9+dr 44-in PostScript Printer with V-Trimmer. Print technology: Thermal inkjet, Maximum resolution: 2400 x 1200 DPI, Page description languages: PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4. Maximum print size: 1118 x 1676 mm, Paper tray media types: Coated paper, Bond paper, Photo paper, Banner, ISO A-series sizes (A0...A9): A0, A1, A2, A3, A4. Ethernet interface type: Gigabit Ethernet, USB connector: USB Type-A, Mobile printing technologies: HP ePrint. Product color: Black, Silver, Internal storage capacity: 500 GB, Storage media: HDD. Power consumption (standby): 32 W, Power consumption (typical): 100 W, Power consumption (off): 0.1 WSpecifications
| Print technology | |
|---|---|
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 9 |
| Print technology | Thermal inkjet |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Print head | 5 |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| HP Dynamic security | Yes |
| Printing | |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 9 |
| Print technology | Thermal inkjet |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Print head | 5 |
| Colour | Yes |
| Borderless printing | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Copying | |
| Copying | No |
| Scanning | |
| Scanning | No |
| Print quality | |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Paper handling | |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Roll paper | Yes |
| Print margin roll | 0.197" (5 mm) |
| Media thickness | 0.8 mm |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Borderless printing | Yes |
| Custom media sizes | 210 x 279 to 1118 x 1676 mm |
| Maximum print size | 1118 x 1676 mm |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| Media types | |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| Media formats | |
| Maximum roll diameter | 5.31" (13.5 cm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Borderless printing | Yes |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi | No |
| Direct printing | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Mobile printing technologies | HP ePrint |
| Wi-Fi Direct | Yes |
| Technical details | |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Print margin roll | 0.197" (5 mm) |
| Direct printing | Yes |
| Borderless printing | Yes |
| UNSPSC-code | 43212107 |
| Box contents | HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Performance | |
| Product colour | Black, Silver |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Sound power level (standby) | 5.1 dB |
| Internal storage capacity | 500 GB |
| Storage media | HDD |
| Built-in display | Yes |
| HP segment | Business |
| Country of origin | China, Thailand |
| Network | |
| Wi-Fi | No |
| Direct printing | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Design | |
| Product colour | Black, Silver |
| Built-in display | Yes |
| Brand-specific features | |
| HP Dynamic security | Yes |
| HP segment | Business |
| Sound emission | |
| Sound power level (standby) | 5.1 dB |
| Power | |
| Power consumption (typical) | 100 W |
| Power consumption (standby) | 32 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 6.5 W |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Weight & dimensions | |
| Width | 70.9" (1802 mm) |
| Package width | 76.8" (1950 mm) |
| Package depth | 30.2" (766 mm) |
| Depth | 27.4" (695 mm) |
| Package height | 28.3" (718 mm) |
| Height | 39.3" (998 mm) |
| Package weight | 302 lbs (137 kg) |
| Weight | 216.1 lbs (98 kg) |
| Packaging data | |
| Package width | 76.8" (1950 mm) |
| Package depth | 30.2" (766 mm) |
| Package height | 28.3" (718 mm) |
| Package weight | 302 lbs (137 kg) |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
| Software | |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
| Certificates | |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Packaging content | |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
| Features | |
| Country of origin | China, Thailand |
| Other features | |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| UNSPSC-code | 43212107 |
