48x 10G SFP+, 1.920 Tbps, 2,857 Mpps, Mini-USB, 600W PSU
Netgear

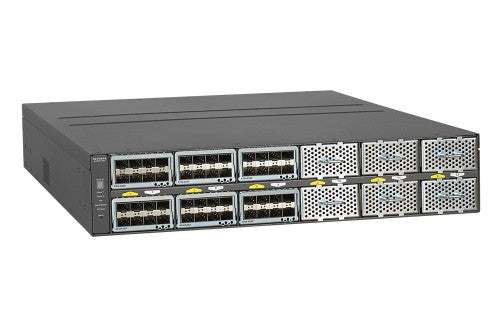

NETGEAR M4300-96X Managed L3 2U Black
Part number:
XSM4396K1-100NES
Sale price
$9,431.17
Regular price
$13,092.40
Save
$3,661.23
28%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
- Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
- Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
- Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
- Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
- Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one “logical” switch
- PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
- 48- and 96-port 10G models’ ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
- Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
- SDN-Ready OpenFlow 1.3 support for maximum investment protection
Description
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Switch layer | L3 |
| Network | |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 2048 |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| 10G support | Yes |
| Address Resolution Protocol (ARP) entries (max) | 8000 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
| Number of multicast groups filtered | 4000 |
| Number of VLANs | 4000 |
| Number of static routes | 64 |
| Packet buffer memory | 96 MB |
| MAC address table | 256000 entries |
| Switching capacity | 1920 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 2857 Mpps |
| Performance | |
| Packet buffer memory | 96 MB |
| Processor frequency | 1400 MHz |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| sFlow | Yes |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 2U |
| Product colour | Black |
| Processor frequency | 1400 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | No |
| Security | |
| DHCP features | DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 4000 |
| Multicast support | Yes |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 2048 |
| Memory | |
| Packet buffer memory | 96 MB |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| Design | |
| Form factor | 2U |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Weight & dimensions | |
| Weight | 35.9 lbs (16.3 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
