RT5392, PCI Express, 32-bit, 802.11b/g/n, 2.400 - 2.484GHz, 77.98 x 119.89 x 20.07 mm, 81.65g
- Complies with 2.4GHz IEEE 802.11 b/g/n standards
- 2T2R with up to 300Mb/s data rate for both transmitting and receiving
- Wireless security: 64/128bit WEP, WPA, WPA2
- Installs in standard height or low profile chassis with included brackets
Siig

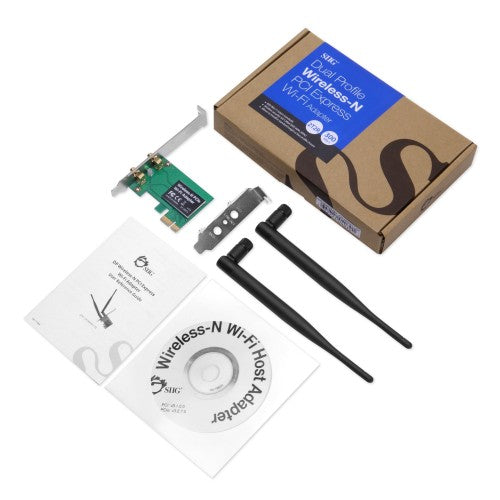

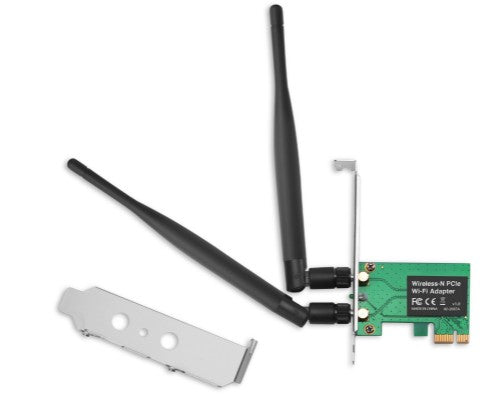

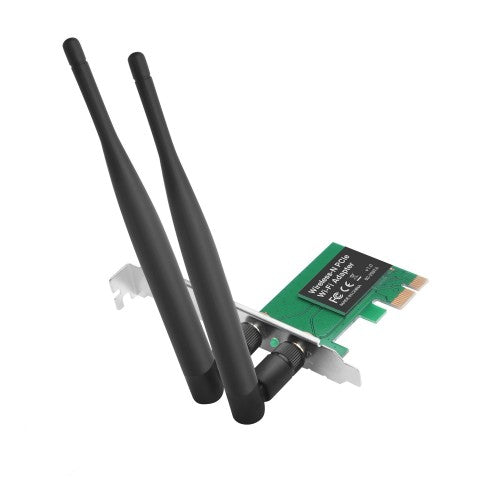

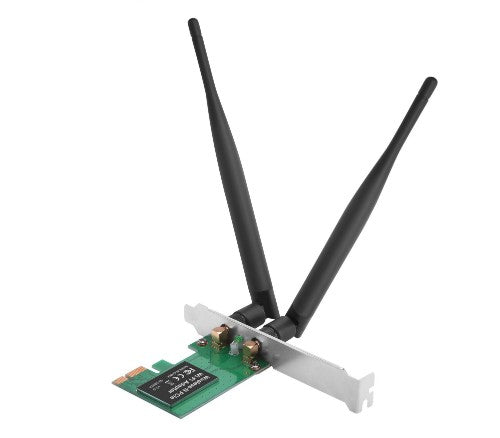

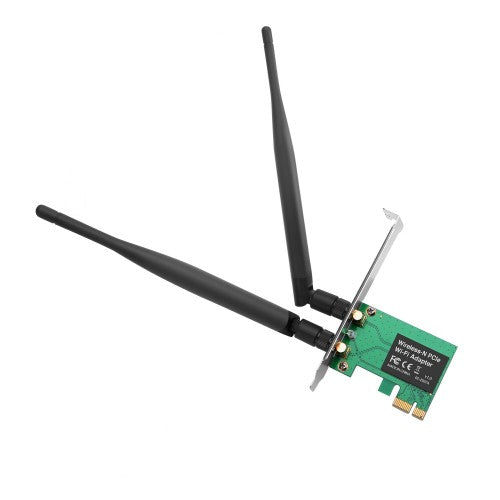

Siig CN-WR0811-S2 network card Internal WLAN 300 Mbit/s
Part number:
CN-WR0811-S2
Sale price
$22.17
Regular price
$39.99
Save
$17.82
45%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Complies with 2.4GHz IEEE 802.11 b/g/n standards
- 2T2R with up to 300Mb/s data rate for both transmitting and receiving
- Wireless security: 64/128bit WEP, WPA, WPA2
- Installs in standard height or low profile chassis with included brackets
Description
SIIG’s DP Wireless-N PCI Express Wi-Fi Adapter with dual profile adds high speed wireless network connectivity to any PCI Express enabled PC. This PCI Express wireless card provides reliable data transfer rate up to 300Mb/s, and is easy to install. Stream media, download files, play games and talk online when connected to a Wireless-N router.- Complies with 2.4GHz IEEE 802.11 b/g/n standards
- 2T2R with up to 300Mb/s data rate for both transmitting and receiving
- Wireless security: 64/128bit WEP, WPA, WPA2
- Installs in standard height or low profile chassis with included brackets
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Interface | WLAN |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 300 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Bandwidth (second) | 40 GHz |
| Bandwidth (first) | 20 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 300 Mbit/s |
| Network | |
| Chipset | RT5392 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Bandwidth (second) | 40 GHz |
| Bandwidth (first) | 20 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported | 300 Mbit/s |
| Media access protocol | CSMA / CA |
| Frequency range | 2.4 - 2.484 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Gain | 5 dBi |
| Antenna | |
| Antennas quantity | 2 |
| Quality of Service (QoS) support | Yes |
| Antenna | Yes |
| Gain | 5 dBi |
| Frequency range | 2.4 - 2.484 GHz |
| Detachable antenna(s) | Yes |
| Antenna connector type | RP-SMA |
| Technical details | |
| Quality of Service (QoS) support | Yes |
| Detachable antenna(s) | Yes |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Design | |
| Chipset | RT5392 |
| Antenna | Yes |
| Certification | FCC, CE |
| Internal | Yes |
| LED indicators | Yes |
| Country of origin | China |
| Antenna connector type | RP-SMA |
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 3.07" (78 mm) |
| Depth | 4.72" (119.9 mm) |
| Height | 0.79" (20.1 mm) |
| Weight | 2.88 oz (81.7 g) |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2 |
| Protocols | |
| Media access protocol | CSMA / CA |
| Packaging data | |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Mounting brackets included | Yes |
| Manual | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Performance | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-AES, WPA-TKIP, WPA2 |
| Certificates | |
| Certification | FCC, CE |
| Other features | |
| Chipset | RT5392 |
| Manual | Yes |
| Antennas quantity | 2 |
| Gain | 5 dBi |
| Detachable antenna(s) | Yes |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
