Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
APC

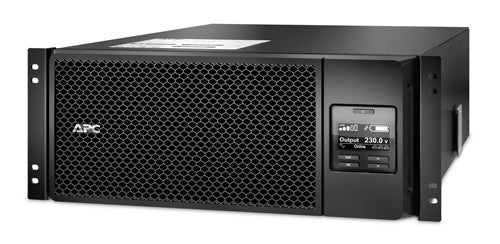

APC SRT6KRMXLIM uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 13 AC outlet(s)
Part number:
SRT6KRMXLIM
Sale price
$7,166.27
Regular price
$10,090.00
Save
$2,923.73
29%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.Specifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 6000 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Input frequency | 40 - 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Temperature voltage compensation | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Output power | 6000 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 6 kVA |
| Temperature voltage compensation | Yes |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| Cabling technology | 10/100Base-T |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 4U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EAC, RCM, VDE, REACH |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 55428.62 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, EAC, RCM, VDE, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 24" (610 mm) |
| Package depth | 37.8" (960 mm) |
| Package height | 14.6" (370 mm) |
| Weight | 132.3 lbs (60 kg) |
| Width | 17" (432 mm) |
| Height | 6.85" (174 mm) |
| Depth | 28.3" (719 mm) |
| Package volume | 67000 cm³ |
| Packaging data | |
| Package volume | 67000 cm³ |
| Package width | 24" (610 mm) |
| Package depth | 37.8" (960 mm) |
| Package height | 14.6" (370 mm) |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 55428.62 |
