Sealed lead acid, 12V, 9Ah

Description

- Extend Runtime — Extends battery runtime of Furman's F1500-UPS by up to 4x.
- Form Factor — 2U configuration supports both rack and tower mounting.
- Metal Housing — Rigid metal construction allows for placement in areas with a demanding environment.
- Power On/Off Switch — Local power switch for manual reset & control.
- Back-panel Fuse — User replaceable fuse which is easily accessed from the rear panel.

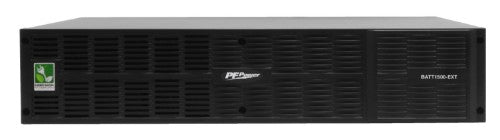

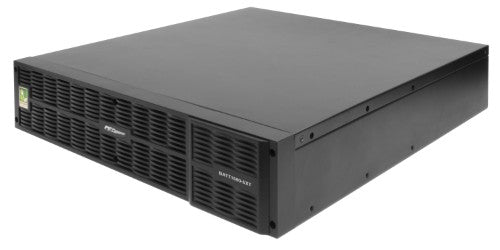

This 2RU battery pack aesthetically matches the F1500-UPS and can be rack or tower mounted. The heavy gauge power cord is adapted with plug-n-play DC connectors for easy installation. The all metal enclosure safely houses the 8 (eight) 12V 9Ah batteries which are connected via 2 strings of 4 in serial.

Specifications

Design
Form factor	Rackmount
Rack mounting	Yes
Product colour	Black
Rack capacity	2U
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	8
Battery capacity	9 Ah
Battery voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 590551.2" (0 - 15000 m)
Certificates
Certification	- UL1778, cUL 107.1, FCC DOC B
Weight & dimensions
Width	19" (482.6 mm)
Depth	17" (431.8 mm)
Height	4" (101.6 mm)
Weight	66.8 lbs (30.3 kg)
Technical details
Compliance certificates	RoHS
