StarTech.com 8U 19" Vertical Wall Mount Server Rack Cabinet - Low Profile (15") - 30" Deep Locking Network Enclosure w/2U for Switch Patch Panel Router Mounting IT/Data Cabinet Assembled (RK830WALVS)
This 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com

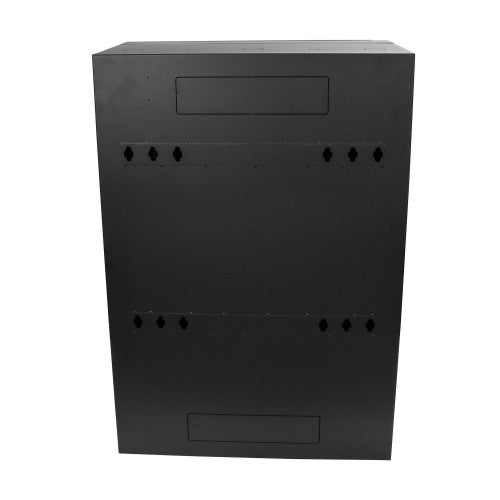

StarTech.com RK830WALVS rack cabinet 8U Wall mounted rack Black
Part number:
RK830WALVS
Sale price
$582.09
Regular price
$604.99
Save
$22.90
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- MOUNT YOUR SERVERS VERTICALLY: This 8U vertical wall mount server rack cabinet features a space saving low profile design & provides up to 30" of mounting depth while only extending 15" from the wall
- INCLUDES AN EXTRA 2U OF MOUNTING SPACE: 2U of angled 2 post horizontal mounting space is provided above the vertical server mounting rails for switches, patch panels, and routers up to 4.7" in depth
- TECH SPECS: 8U 19" Vertical Wallmount Enclosure
- Pre-Assembled
- EIA/ECA-310-E
- Rear & Bottom Cable Routing
Description
Vertically wall-mount your server or networking equipment in this 8U network cabinetThis 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 18.1" (460 mm) |
| Package width | 28.3" (720 mm) |
| Package height | 40.2" (1020 mm) |
| Package weight | 86 lbs (39 kg) |
| Inner width | 25.3" (64.2 cm) |
| Inner depth | 14.8" (37.6 cm) |
| Width | 26.6" (675 mm) |
| Depth | 15.1" (383 mm) |
| Height | 37" (940 mm) |
| Weight | 80.5 lbs (36.5 kg) |
| Maximum weight capacity | 198.4 lbs (90 kg) |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 32 |
| Screws included | Yes |
| Number of screws | 32 |
| Features | |
| Frame type | Closed |
| Product design | 2-post |
| Rack capacity | 8U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable back door | No |
| Removable front door | No |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Mounting hole shape | Round |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Maximum weight capacity | 198.4 lbs (90 kg) |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 32 |
| Package depth | 18.1" (460 mm) |
| Package width | 28.3" (720 mm) |
| Package height | 40.2" (1020 mm) |
| Package weight | 86 lbs (39 kg) |
| Screws included | Yes |
| Number of screws | 32 |
| Technical details | |
| Package width | 28.3" (720 mm) |
| Package height | 40.2" (1020 mm) |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | CE, RoHS |
| Rack capacity | 8U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 18.1" (460 mm) |
| Master (outer) case length | 28.3" (720 mm) |
| Master (outer) case height | 40.2" (1020 mm) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
