USB B, RJ-45, DC 24V 1A, 480 Mbps
The USB Ultimate Network or Direct Connect Extender uses inexpensive UTP cable you may already have installed in your building or your existing LAN architecture for easy, cost-effective USB extension.
It's ideal for USB keyboard and mouse extension and sensor/data acquisition applications. Plus it's great for connecting to whiteboards in classrooms located beyond the maximum USB bus distance.
Or use the extender to bridge the gap between a computer CPU or server and USB flash drives, scanners, and printers in other rooms, as well as for connecting USB monitoring cameras or USB touch screens used for interactive digital signage.
The extender offers reliable operation with all USB 2.0 and 1.1 peripheral devices, including USB hubs. The local unit and the four-port remote unit receive their power from the included AC adapters, and the local unit supplies 600-mA power over the link to each USB port on the remote unit.
Black Box

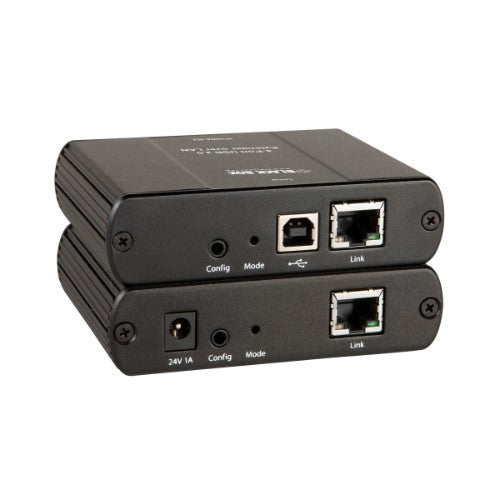

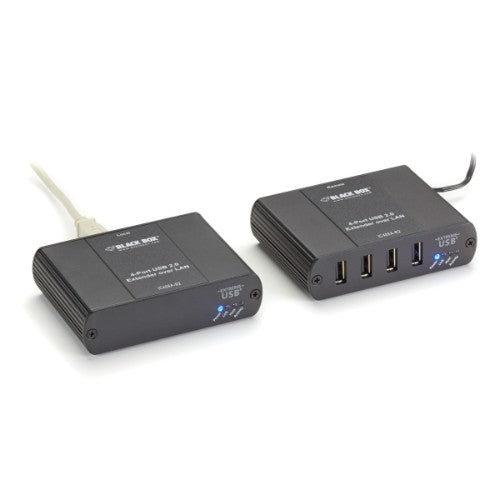

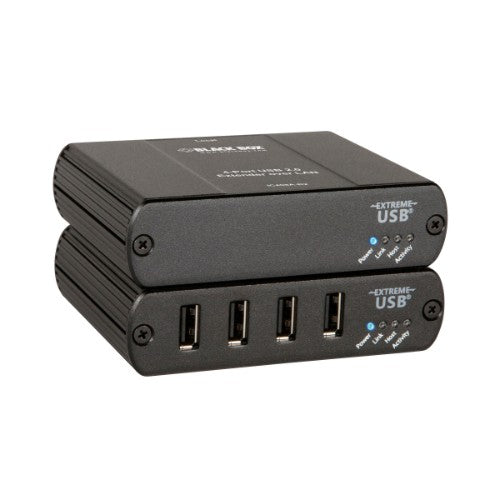

Black Box IC408A-R2 network extender Network transmitter 10, 100, 1000 Mbit/s
Part number:
IC408A-R2
$498.07
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Great for extending USB keyboard, interactive whiteboard, or storage device signals
- Flexible! Extend over either an Ethernet LAN or CATx cable direct connection
- Transmits up to 328 feet (100 m) over CATx or between network switches
Description
Extend USB signals for up to four devices as far as 328 feet (100 m) over a non-networked CAT5e connection or over your Ethernet LAN.The USB Ultimate Network or Direct Connect Extender uses inexpensive UTP cable you may already have installed in your building or your existing LAN architecture for easy, cost-effective USB extension.
It's ideal for USB keyboard and mouse extension and sensor/data acquisition applications. Plus it's great for connecting to whiteboards in classrooms located beyond the maximum USB bus distance.
Or use the extender to bridge the gap between a computer CPU or server and USB flash drives, scanners, and printers in other rooms, as well as for connecting USB monitoring cameras or USB touch screens used for interactive digital signage.
The extender offers reliable operation with all USB 2.0 and 1.1 peripheral devices, including USB hubs. The local unit and the four-port remote unit receive their power from the included AC adapters, and the local unit supplies 600-mA power over the link to each USB port on the remote unit.
Specifications
| Performance | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network transmitter |
| Maximum transfer distance | 3937" (100 m) |
| Data transfer rate | 480 Mbit/s |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Housing material | Aluminum |
| LED indicators | Activity, Link, Power |
| Certification | FCC (B), IC (B), CE (B); EMC EN-61000-4-2:2001 |
| Product colour | Black |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.94" (100 mm) |
| Depth | 2.99" (76 mm) |
| Height | 1.02" (26 mm) |
| Weight | 3.09 lbs (1.4 kg) |
| Technical details | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Activity, Link, Power |
| Type | Network transmitter |
| Maximum transfer distance | 3937" (100 m) |
| Data transfer rate | 480 Mbit/s |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC (B), IC (B), CE (B); EMC EN-61000-4-2:2001 |
| Compliance certificates | RoHS |
