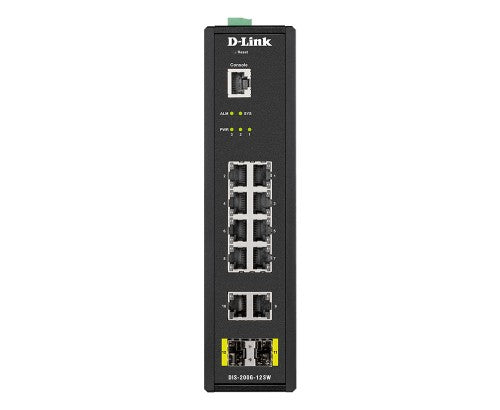

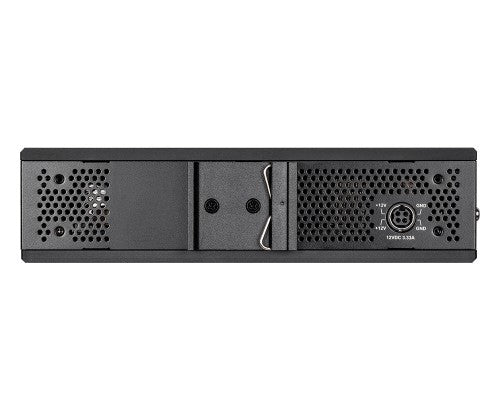

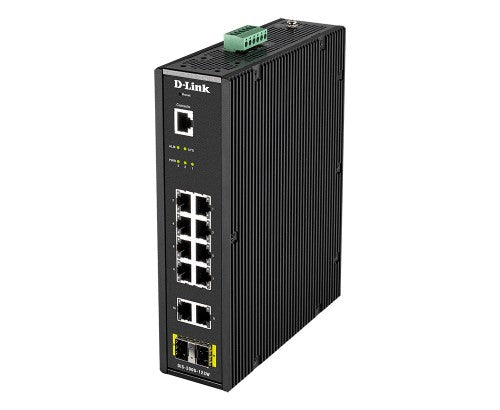

D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
D-Link

D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Part number: DIS-200G-12SW
$768.91 $1,069.99
Save $301.08
28% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

10x 1000Base-T Interface, 2x 1000M SFP Interface, Auto MDI/MDIX, Console Port, 24Gbps, 210 x 171.2 x 48 mm

Key Features

  • 10 x 10/100/1000BASE-T ports
  • 2 x SFP ports
  • 1 x RJ-45 Console port
  • Wide operating temperature: -40 to 75 °C (-40 to 167 °F)
  • Robust industry-standard enclosure
  • ERPS for quick failover recovery
  • High EMC endurance
  • Built-in 6 kV surge protection

Description

Durable and Reliable Design
The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.

High Redundancy and Reliability
The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.

Surveillance Traffic Optimization
The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.

Easy Troubleshooting
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.

Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DIS-200G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

Specifications

Management features
Multicast support Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Switch layer L2
Configuring Location Settings (CLI) Yes
Ports & interfaces
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 2
Gigabit Ethernet (copper) ports quantity 10
Console port RJ-45
Network
IGMP snooping Yes
Active link detection Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Number of VLANs 4094
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features Port-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support Yes
Number of VLANs 4094
Virtual LAN features Port-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs 4094
Jumbo frames 9600
MAC address table 8000 entries
Switching capacity 24 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 17.85 Mpps
Performance
Stackable No
Auto-negotiation Yes
Mean time between failures (MTBF) 219314 h
Technical details
Product colour Black
Stackable No
Mean time between failures (MTBF) 219314 h
Housing material Metal
Rack mounting Yes
Security
Authentication Port-based authentication
Security algorithms 802.1x RADIUS, SSL/TLS
IGMP snooping Yes
Queue scheduling algorithms SPQ, Weighted Round Robin (WRR)
Authentication type RADIUS
DHCP features DHCP client
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2c/v3, SNTP, Telnet
Certificates
Certification CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Design
Wall mountable No
International Protection (IP) code IP30
DIN rail mounting Yes
Product colour Black
Stackable No
LED indicators Yes
Housing material Metal
Certification CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Rack mounting Yes
Indication
LED indicators Yes
Power
Power consumption (max) 10.26 W
DC input voltage 12 - 48 V
Power source PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Storage relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 0 - 95%
Heat dissipation 35.01 BTU/h
Weight & dimensions
Width 6.74" (171.2 mm)
Depth 2.09" (53 mm)
Height 8.27" (210 mm)
Weight 3.59 lbs (1.63 kg)
