24 x Gigabit PoE+ ports, 4 x Shared Gigabit ports, 370 W, 56 Gbps
Web Smart Management
Provides an easy-to-use web-based management interface to reduce switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.
Hardware Design
Provides 24 gigabit PoE+ ports, 4 shared gigabit ports (RJ-45 or SFP), a 56Gbps switching capacity, a built-in power supply, and rackmount brackets.
PoE Power
Supports up to 30W of PoE+ power per port with a total power budget of 370W.
IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.
Traffic Management
A broad range of network configurations are supported: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls.
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
Trendnet

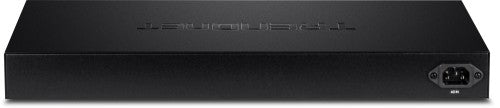

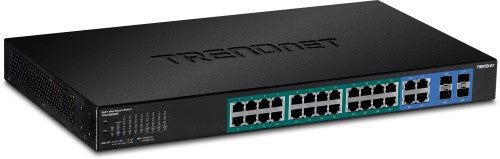

Trendnet TPE-5028WS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number:
TPE-5028WS
Sale price
$545.17
Regular price
$667.10
Save
$121.93
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24 x Gigabit PoE+ ports
- 4 x Shared Gigabit ports (RJ-45 or SFP)
- 370W PoE power budget
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Bandwidth control per port
- Private and Voice VLAN support
- Smart Fan
- 56Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
Description
TRENDnet’s 28-Port Gigabit Web Smart PoE+ Switch, model TPE-5028WS, delivers advanced management features with a 56Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5028WS provides 24 gigabit PoE+ ports with a total power budget of 370W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.Web Smart Management
Provides an easy-to-use web-based management interface to reduce switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.
Hardware Design
Provides 24 gigabit PoE+ ports, 4 shared gigabit ports (RJ-45 or SFP), a 56Gbps switching capacity, a built-in power supply, and rackmount brackets.
PoE Power
Supports up to 30W of PoE+ power per port with a total power budget of 370W.
IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.
Traffic Management
A broad range of network configurations are supported: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls.
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| Multicast MAC address table | 256 entries |
| Security | |
| Security algorithms | HTTPS, SNMP, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast MAC address table | 256 entries |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Linear low-density polyethylene (LLDPE) |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC |
| Performance | |
| Noise level | 52 dB |
| Mean time between failures (MTBF) | 277.604 h |
| Compatible operating systems | Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server |
| Packet buffer memory | 4.1 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 446 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 30 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 9.84" (250 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.64 lbs (3.92 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Resource CD | Yes |
| Packaging data | |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 52 dB |
| Mean time between failures (MTBF) | 277.604 h |
| Housing material | Linear low-density polyethylene (LLDPE) |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
