IP30, SFP port, 40 km, 60 W, DIN-rail and wall mounts
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.
UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.
Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range.
Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot

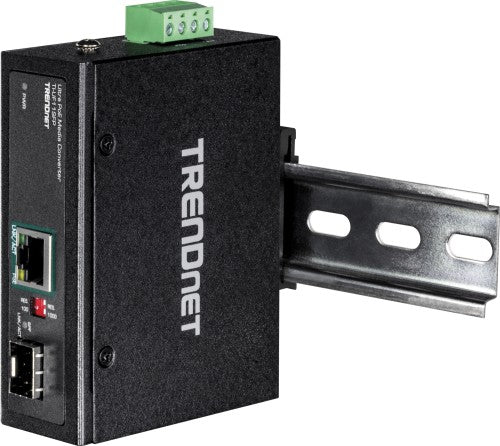

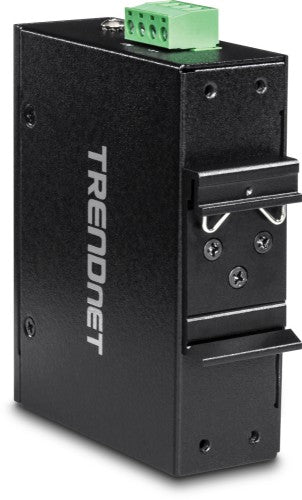

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.
Switching Capacity
2Gbps switching capacity.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance.
Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F).
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards.
Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
Grounding
Grounding point protects equipment from external electrical surges.
Trendnet
Trendnet TI-UF11SFP network media converter Internal 1000 Mbit/s Black
Part number:
TI-UF11SFP
Sale price
$135.71
Regular price
$139.99
Save
$4.28
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Hardened IP30 rated SFP to Gigabit UPoE converter
- SFP port accommodates Multi or Single Mode fiber
- Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
- Provides up to 60W for PoE, PoE+ and UPoE compliant devices

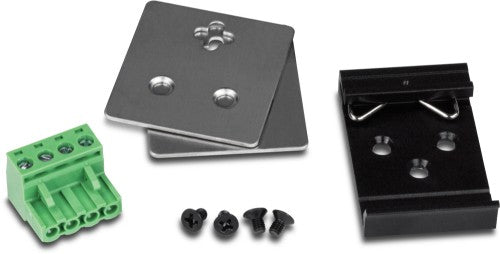

- Includes DIN-rail and wall mounts
- Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
- Overload current protection
- Powers supply sold separately (model TI-S12048)
Description
TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.
UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.
Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range.
Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.
Switching Capacity
2Gbps switching capacity.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance.
Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F).
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards.
Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
Grounding
Grounding point protects equipment from external electrical surges.
Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full, Half |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 157480.3" (4000 m) |
| Buffer size | 1000 KB |
| Mean time between failures (MTBF) | 510.304 h |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminum |
| LED indicators | Yes |
| Product colour | Black |
| Internal | Yes |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 1 |
| Connectivity technology | Wired |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 72 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
| Width | 4.07" (103.5 mm) |
| Depth | 3.21" (81.5 mm) |
| Weight | 5.4 oz (153 g) |
| Height | 1.26" (32 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Aluminum |
| Maximum transfer distance | 157480.3" (4000 m) |
| Buffer size | 1000 KB |
| Internal | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminum |
| LED indicators | Yes |
| Product colour | Black |
| Certification | FCC, CE, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), EN60950-1 (LVD) |
| Internal | Yes |
| Endurance | |
| Mean time between failures (MTBF) | 510.304 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), EN60950-1 (LVD) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
