StarTech.com M.2 to SATA Adapter - Dual Slot - for 2.5in Drive Bay - RAID - M.2 NGFF SSD - M.2 Adapter - M.2 SSD Adapter
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Install two M.2 SSD drives into a single 2.5” drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5” SATA form factor housing
StarTech.com

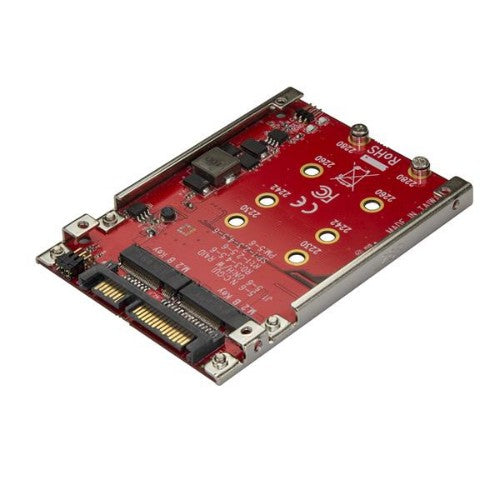

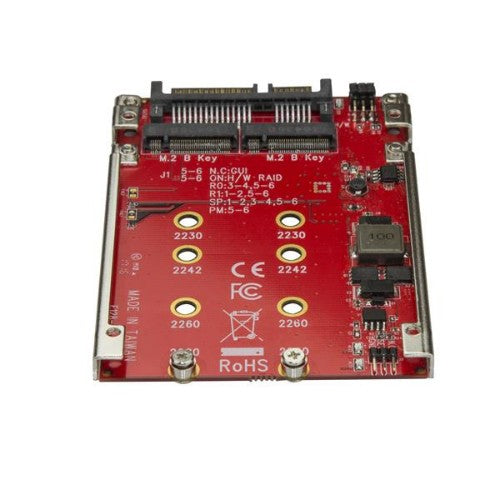

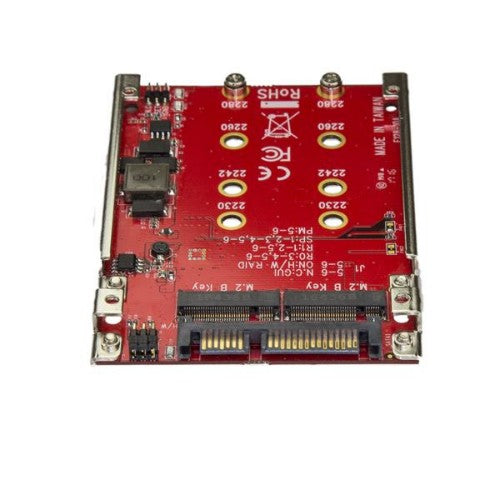

StarTech.com S322M225R interface cards/adapter Internal M.2
Part number:
S322M225R
Sale price
$45.71
Regular price
$59.99
Save
$14.28
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interfaceBoost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

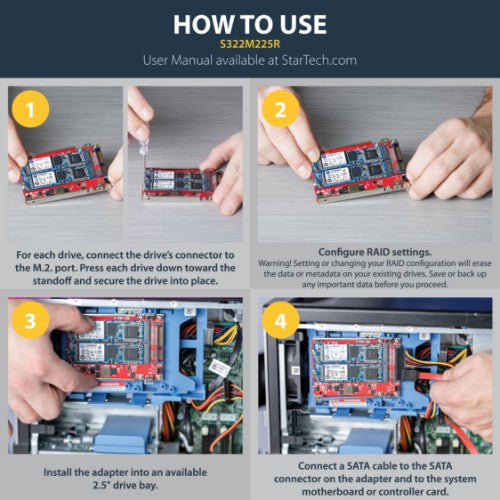

Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Install two M.2 SSD drives into a single 2.5” drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5” SATA form factor housing
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Port multiplier | Yes |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Host interface | SATA |

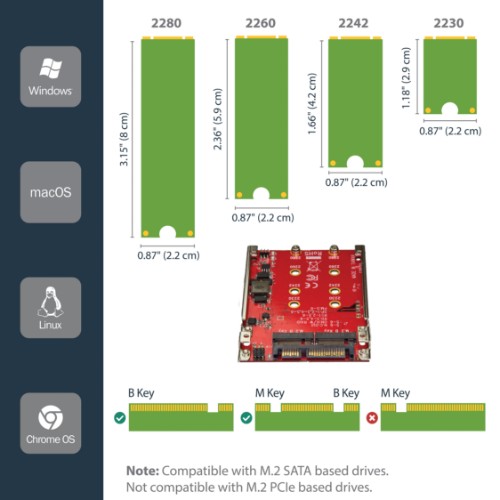

| Number of M.2 (B) slots | 2 |
| Number of SSDs supported | 2 |
| Technical details | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID levels | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Port multiplier | Yes |
| Hot-swap | No |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID levels | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Red |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FCC, REACH, TAA |
| Colour | |
| Product colour | Red |
| Design | |
| Hot-swap | No |
| Easy to install | Yes |
| Internal | Yes |
| Product colour | Red |
| Certification | CE, FCC, REACH, TAA |
| Features | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID levels | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |

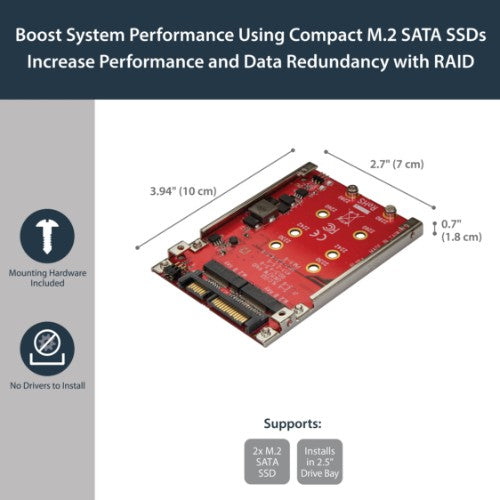

| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Height | 0.276" (7 mm) |
| Weight | 1.45 oz (41 g) |
| Package width | 6.77" (172 mm) |
| Package depth | 5.59" (142 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 3.88 oz (110 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 6.77" (172 mm) |
| Package depth | 5.59" (142 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 3.88 oz (110 g) |
| Quick installation guide | Yes |
| Screws included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |

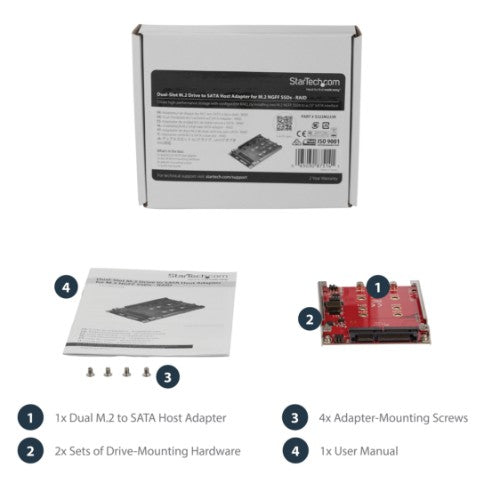

| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Screws included | Yes |
| Other features | |
| Chipset | ASMedia - ASM1092R |
