USB 3.0 7-Port Ext PCIe Host Adapter
Siig
Siig LB-US0514-S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Part number:
LB-US0514-S1
$48.21
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

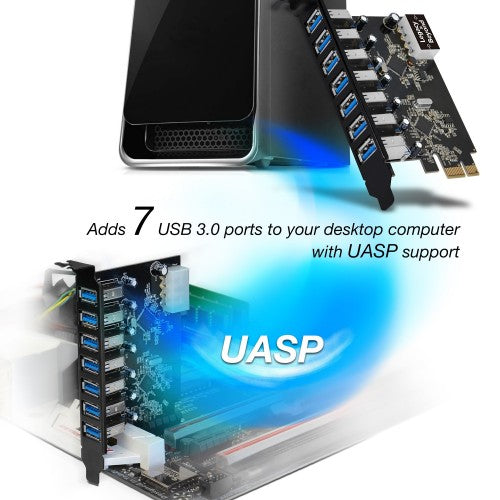

- Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
- Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
- Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs

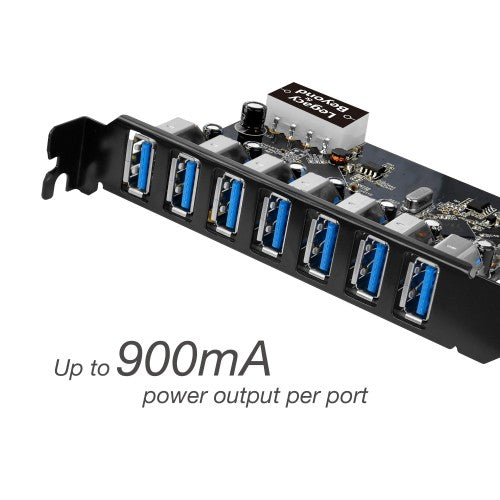

- Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
- Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Description
SIIG’s USB 3.0 7-Port (Ext) PCIe Host Card allows you to add seven SuperSpeed USB 3.0 external ports to your desktop computer via a PCI Express slot to enhance your system’s USB connectivity performance. It supports 5Gb/s ultra-fast USB 3.0 data transfer rate and provides up to 900mA power output per port with over-current protection to ensure smooth and reliable data transmission. This is a great USB port expansion solution to enable a variety of external device connections for maximum productivity.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |

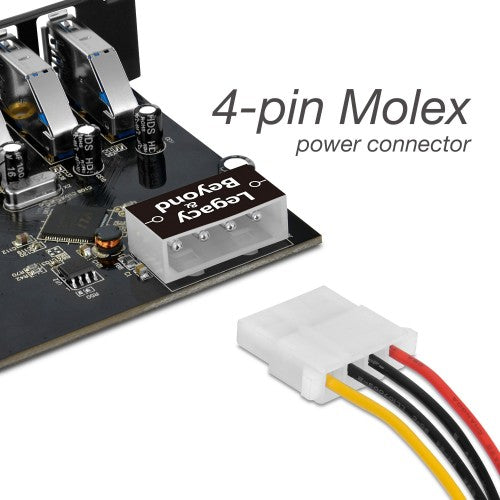

| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |

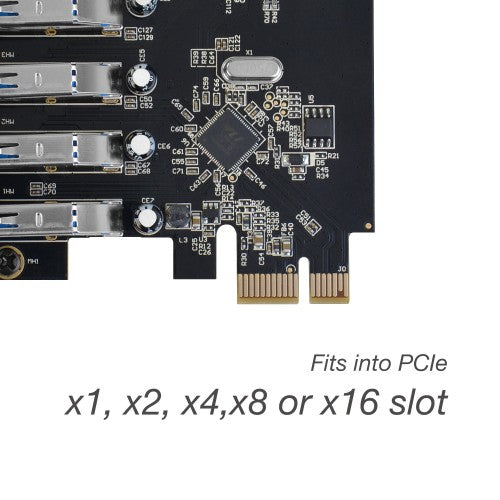

| Expansion card standard | PCIe 2.0 |
| Technical details | |
| Chipset | VIA VL805 + VL813 |
| Data transfer rate (max) | 5 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Chipset | VIA VL805 + VL813 |
| Data transfer rate (max) | 5 Gbit/s |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Colour | |
| Product colour | Black |
| Design | |
| Country of origin | China |
| Internal | Yes |
| Product colour | Black |
| Certification | FCC, CE |
| Features | |
| Chipset | VIA VL805 + VL813 |
| Data transfer rate (max) | 5 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 4.72" (120 mm) |
| Depth | 3.27" (83 mm) |
| Height | 0.866" (22 mm) |
| Weight | 2.24 oz (63.5 g) |
| Other features | |
| Chipset | VIA VL805 + VL813 |
