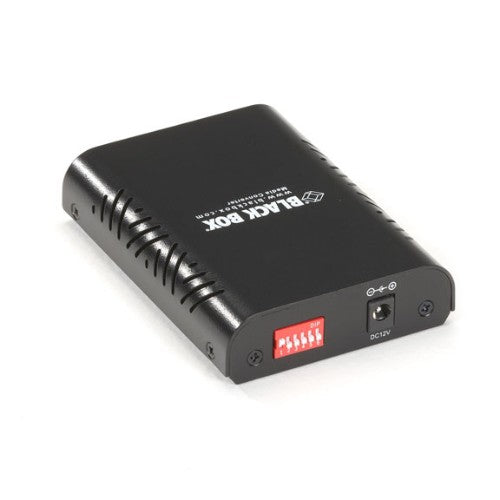

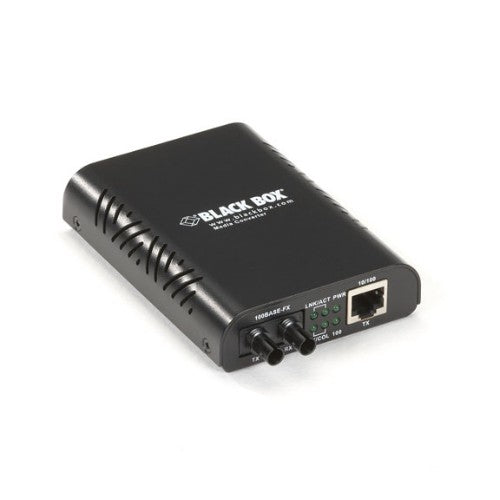

10-/100-Mbps, 1300-nm, Multi-Mode, ST

Description

LBMC300-MMST Features

Extends your network up to 220 meters (721 ft.) over 850-nm multimode fiber or a full 2 kilometers (1.2 mi.) over 1300-nm multimode fiber.
Plug-and-play installation.
Use as a standalone unit or rackmount in the 16-Slot LinkGain Chassis.
Link Fault Pass Through (LFP) shuts down a link if the other side fails.
Auto-sensing 10-/100-Mbps copper ports feature MDI/MDI-X.
Must be used in pairs.

Specifications

Network
Fiber optic connector	ST
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Converter input interface	10Base-T, 100BASE-FX, 100Base-TX
Ethernet LAN data rates	10,100 Mbit/s
Auto MDI/MDI-X	Yes
Maximum data transfer rate	100 Mbit/s
Technical details
Wavelength	1300 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Plug and Play	Yes
Internal	No
Performance
Plug and Play	Yes
Wavelength	1300 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	ST
Indication
LED indicators	Activity, Collision, FDX, Link, Power
Design
LED indicators	Activity, Collision, FDX, Link, Power
Product colour	Black
Certification	CE
Internal	No
Power
Power consumption (max)	1.9 W
Input current	0.16 A
External power adapter	Yes
Management features
Plug and Play	Yes
Colour
Product colour	Black
Weight & dimensions
Width	3.15" (80 mm)
Depth	4.29" (109 mm)
Height	0.945" (24 mm)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE
