FlexPoint Modular Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Multimode, LC
- Easy installation and transparent operation—no software required.
- Links copper-based 10BASE-T or 100BASE-TX to 100BASE-FX
- Functions as a Layer 2 switch—each port is capable of learning and aging up to 1024 MAC addresses.
- Sends data up to 2 kilometers (62.1 mi.).
- Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards.
- Both UTP and fiber ports support full- and half-duplex operation.
- UTP port autosenses 10- or 100-Mbps speeds.
- Manual override switch for extra control over fiber and UTP ports.
- Crossover switch provides easy connections to hubs or switches.
- Hardware available for mounting converter to a wall or a DIN rail.
- Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
FlexPoint™ Converters from Black Box® are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.
The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.
Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.
Black Box

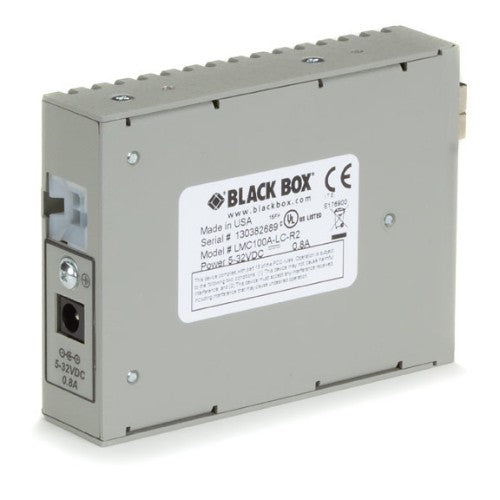

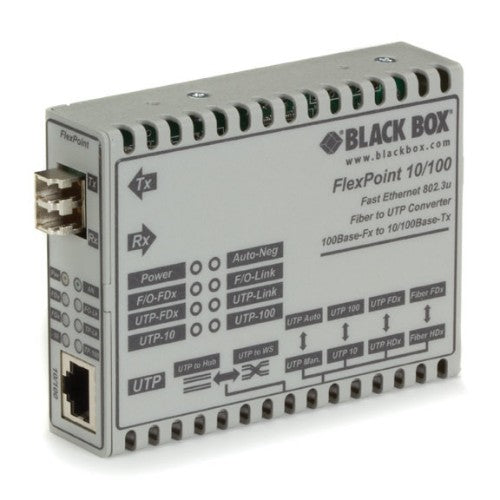

Black Box LMC100A-LC-R2 network media converter Internal 100 Mbit/s Multi-mode
Part number:
LMC100A-LC-R2
$380.27
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Converts 10BASE-T or 100BASE-TX to 100-Mbps fiber.- Easy installation and transparent operation—no software required.
- Links copper-based 10BASE-T or 100BASE-TX to 100BASE-FX
- Functions as a Layer 2 switch—each port is capable of learning and aging up to 1024 MAC addresses.
- Sends data up to 2 kilometers (62.1 mi.).
- Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards.
- Both UTP and fiber ports support full- and half-duplex operation.
- UTP port autosenses 10- or 100-Mbps speeds.
- Manual override switch for extra control over fiber and UTP ports.
- Crossover switch provides easy connections to hubs or switches.
- Hardware available for mounting converter to a wall or a DIN rail.
- Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
FlexPoint™ Converters from Black Box® are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.
The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.
Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.
Specifications
| Network | |
|---|---|
| Converter input interface | 10Base-T, 100Base-TX |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Converter output interface | 100Base-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | LC |
| Performance | |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Features | |
| LED indicators | Yes |
| Internal | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| Power | |
| Input voltage | 110 V |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Width | 2.99" (76 mm) |
| Depth | 4.02" (102 mm) |
| Weight | 7.05 oz (200 g) |
| Height | 0.984" (25 mm) |
| Technical details | |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Internal | Yes |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Internal | Yes |
